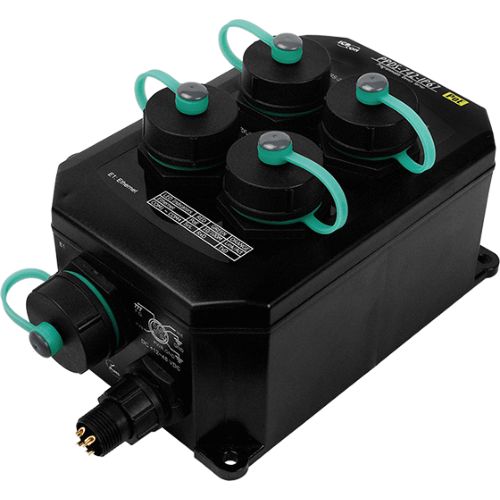

PPDS-742-IP67 CR
Programmable (2x RS-232 and 2x RS-485) Serial-to-Ethernet Device Server with PoE and IP67 Casing Includes 5-pin Waterproof Power Plug (4SIO1K0000013)
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
- Powerful Programmable Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- Self-Tuner ASIC Controller on the RS-485 Port
- RoHS Compliant with no Halogen
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator) - ODM Service Is Available
- Low power consumption
- Palm-Sized with multiple Serial Ports
- Made from fire retardant materials (UL94-V0 Level)
- Plastic Casing with IP67 Waterproof
- Support PoE ( IEEE 802.3af, Class 1 )
- Rugged RJ45 Connector for anti-vibration and shock
INTRODUCTION
The PPDS-700-IP67 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PPDS-700-IP67 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS-700-IP67 series is able to meet the demands of every network-enabled application.
The PPDS-700-IP67 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDS-700-IP67 up in just one second and gives you fastest responses.
The PPDS-700-IP67 is a special design for the toughest applications. It can be directly mounted to any machine or convenient flat surface. The rugged packaging and IP67 connectors are rated to protect against water, oil, dust, vibration, and much more.
The PPDS-700-IP67 supports PoE (Power over Ethernet) function that allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation. When there is no PoE switch on site, the PPDS-700-IP67 accepts power input from a +12 VDC ~ +48 VDC adapter.
When using PoE devices such as the PPDS-700-MTCP, PPDS-700-IP67 and PET-7000 (Ethernet I/O module with PoE), you can select the ICP DAS "PoE" switch — "NS-205PSE" — as the power source. The NS-205PSE automatically detects whether the connected devices are PoE devices or not. This mechanism ensures that the NS-205PSE will work with both PoE and non-PoE devices simultaneously.
As a power source for PoE devices, the NS-205PSE requires a power input ranging from +46 VDC ~ +55 VDC.
APPLICATIONS
- Factory Automation
- Transportation Automation
- Chemical Industry Automation
- Marine Automation
CPU
CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles
EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles.
Built-in Watchdog Timer Yes
Communication Interface
Non-isolated
COM1 RS-232 (TxD, RxD, RTS, CTS,GND)
COM2 Isolated RS-485 (D2+, D2-,GND)
COM3 RS-232 (TxD, RxD, RTS, CTS,GND)
COM4 Isolated RS-485 (D2+, D2-,GND)
Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator), PoE (IEEE 802.3af, Class 1)
COM Port Formats
Data Bit 7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM4
Parity None, Even, Odd, Mark, Space
Stop Bit 1: for COM1, COM2
1, 2: for COM3 ~ COM4
Baud Rate 115200 bps Max.
LED Indicators
System Red: Sys
Ethernet Green: Link/Act (E1)
Orange: 10/100 M (E1)
COM1 ~ COM4 Green: RxD
Orange: TxD
Power
Protection Power Reverse Polarity Protection
Required Supply Voltage +12 VDC ~ +48 VDC(non-regulated) or PoE (IEEE 802.3af, Class 1)
Power Consumption 2.2 W
Mechanism
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimension (W x H x D) 85 mm x 76 mm x 137 mm (89 mm x 90 mm x 138 mm for /DIN versions)
Installation Wall mounting (DIN-Rail mounting for /DIN versions)
Environment
Operating Temperature -10 °C ~ +60 °C
Storage Temperature -10 °C ~ +60 °C
Humidity 100% RH for operating temperature -10 °C ~ +60 °C
