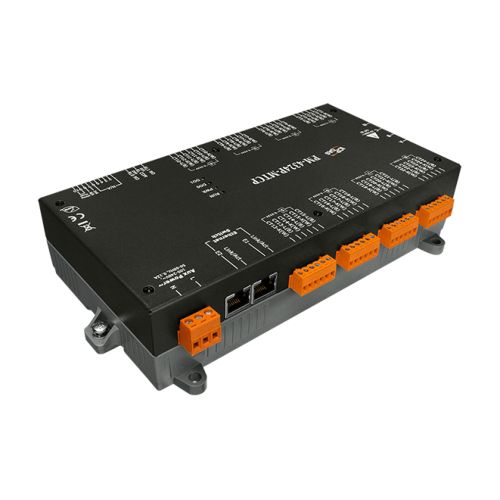

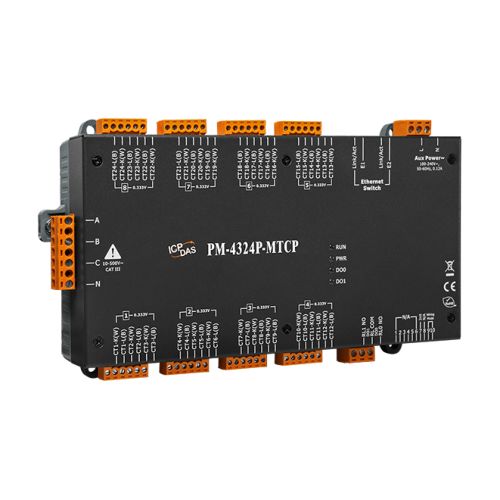

PM-4324P-MTCP CR, Modbus TCP, Multi-Circuit Power Meter (Can be directly input from the secondary side of 333mV CT)
PM-4324P-MTCP CR
Modbus TCP, Multi-Circuit Power Meter (Can be directly input from the secondary side of 333mV CT)
Features
- Bi-directional Energy
- 8 Three Phase Circuits or 24 Single Phase Circuits
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Measure different current ranges with different 333mV CTs
- Voltage Measurements Up to 500 V
- Easy install with split core CT
- W Accuracy Better than 5% (PF=1)
- Total Harmonic Distortion (THD)
- Support Modbus TCP Protocol
- Support 2 Power Relay Output (Form A)
Introduction
The PM-4324P series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324P series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324P series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. You can use CT's that you currently own with PM-4324P (without CTs) Power Meter. The CT inputs of the PM-4324P can be directly input from the secondary side of 333mV CT.
Applications
Generator monitoring
Switchgear distribution systems
Energy Management
Power quality analysis
Specifications
AC Power Measurement
Wiring: 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops: Multi-circuit
Input Voltage: 10 ~ 500 V
Input Frequency: 50/60 Hz
W Accuracy: Better than 5% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate: 1 Second
CT
Includes CTs: 0
Ethernet:
Protocol: Modbus TCP
Power
Input Range: +85 ~ +264 VAC (277 VAC available)
Consumption: 6 W
Alarm Output: Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing: Metal
Dimensions (mm): 237 x 57 x 134 (W x L x H)
Installation: DIN-Rail & wall mounting
Environment
Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
