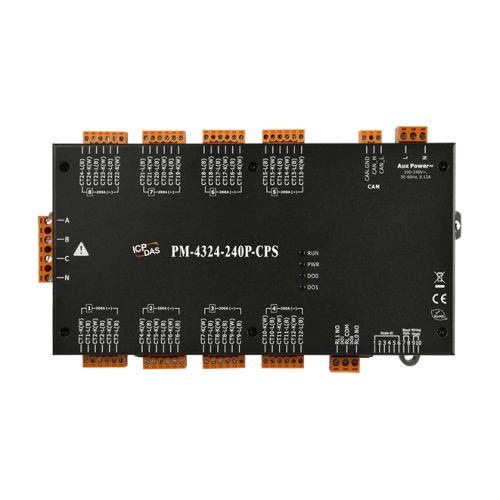

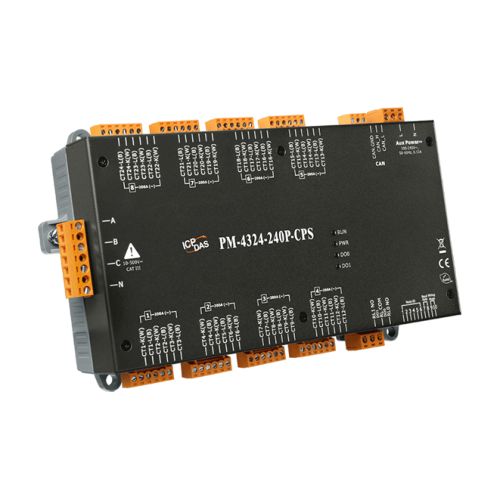

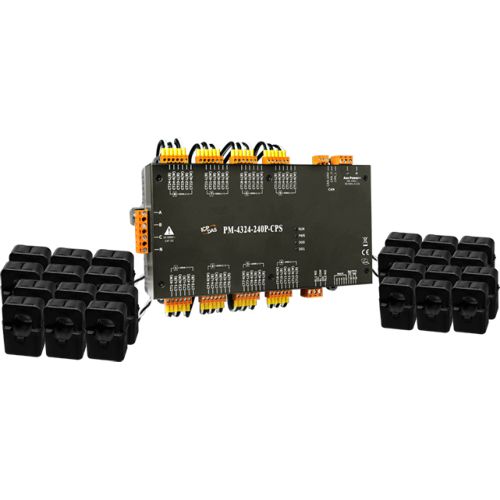

PM-4324-240P-CPS CR, CANopen, Multi-Circuit Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 24
PM-4324-240P-CPS CR
CANopen, Multi-Circuit Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 24
Features
- Bi-directional Energy
- 8 Three Phase Circuits or 24 Single Phase Circuits
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 200 A with Different CT Ratio
- Voltage Measurements Up to 500 V
- Easy install with split core CT
- W Accuracy Better than 0.5% (PF=1)
- Total Harmonic Distortion (THD)
- Support CANopen Protocol
- Support 2 Power Relay Output (Form A)
Introduction
The PM-4324 series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324 series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. The PM-4324A is the same model as the PM-4324, except for the AC Measurement. The PM-4324A has 2 separate main circuit inputs that can use in the different power system.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy Management
- Power quality analysis
Specifications
AC Power Measurement
Wiring: 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops: Multi-circuit
Input Voltage: 10 ~ 500 V
Input Current: CTØ24 mm (0.15 A ~ 200 A)
Input Frequency: 50/60 Hz
W Accuracy: Better than 0.5% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate: 1 Second
CT
Includes CTs: 24
Type: Clip
Max. Current: 200 A
Inside Diameter: 24 mm
Leading Cable: 4 mm
CANopen
Baud Rate: 125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable
Isolation: 3000 VDC
Protocol: CANopen
Power
Input Range: +85 ~ +264 VAC (277 VAC available)
Consumption: 6 W
Alarm Output: Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing: Metal
Dimensions (mm): 237 x 57 x 134 (W x L x H)
Installation: DIN-Rail & wall mounting
Environment
Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
