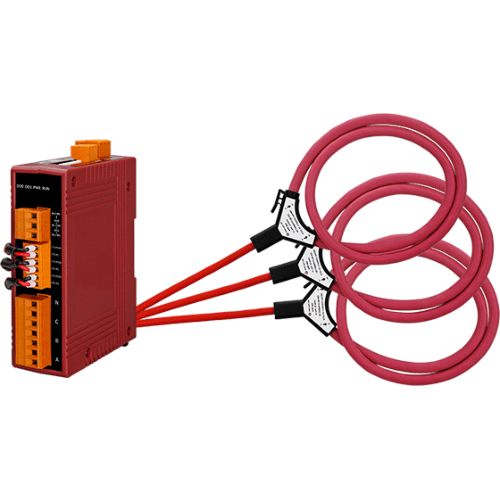

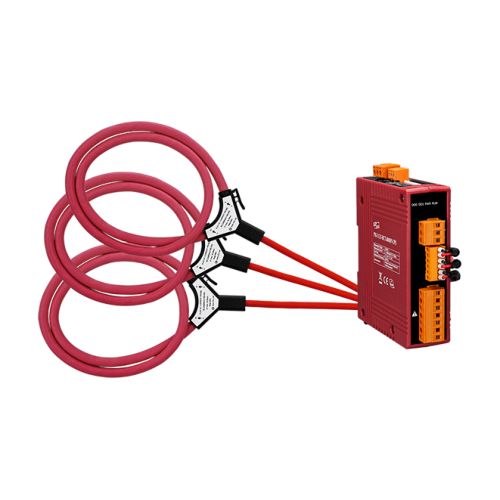

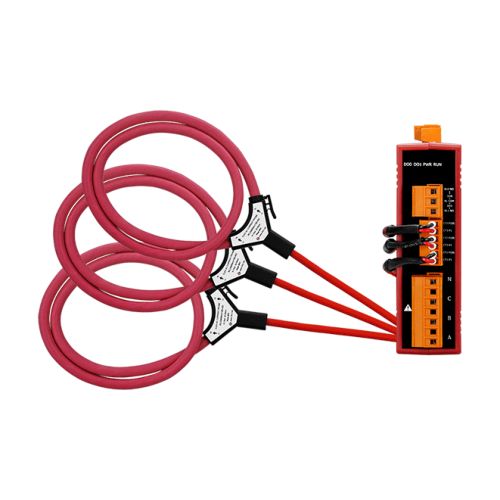

PM-3133-RCT4000P-CPS CR, CANopen, 3-phase power meter, 4000A Rogowski Coil CT (Inside diameter 185 mm; wire lead 4 m) x 3
PM-3133-RCT4000P-CPS CR
CANopen, 3-phase power meter, 4000A Rogowski Coil CT (Inside diameter 185 mm; wire lead 4 m) x 3
Features
- Bi-directional Energy
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 4000 A
- Voltage Measurements Up to 500 V
- Rogowski Coil Soft CT for Easy Installation
- W Accuracy Better than 2% (PF=1 Input Current >50A)
- Total Harmonic Distortion (THD)
- Supports CANopen Protocol
- Supports 2 Power Relay Output (Form A)
- IEC 61010-1 and EN 61010-1
- Multiple Data Format
Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3133-RCT that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<2%, PF=1; Input Current >50A), this series can be used to both low voltage primary side and medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters monitoring equipment with Rogowski Coil CT is "ropestyle" Current Transformer which delivers "Easy Installation" features for large window size (55 ~ 185mm) and mechanical flexibility for tight space. It operates over a wide range of input voltages 10 ~ 500 VAC which allows universal compatibility. Also, with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.
Applications
Generator monitoring
Switchgear distribution systems
Energy Management
Power quality analysis
Specifications
AC Power Measurement
Wiring: 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops: Three-phase
Input Voltage: 10 ~ 500 V
Input Current: CTØ185 mm (5 A ~ 4000 A)
Input Frequency: 50/60 Hz
W Accuracy: Better than 2% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent
Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate: 1 Second
CT
Includes CTs: 3
Type: Rogowski
Max. Current: 4000 A
Inside Diameter: 185 mm
Leading Cable: 4 m
CANopen

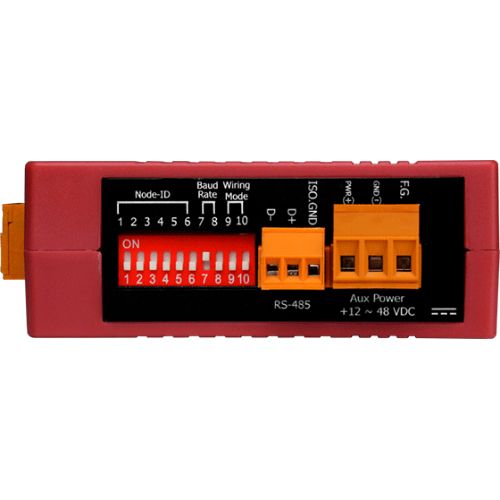

Baud Rate: 125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable
Isolation: 3000 VDC
Protocol: CANopen
Power
Input Range: +12 ~ 48 VDC
Consumption: 2W
Alarm Output: Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 100 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
