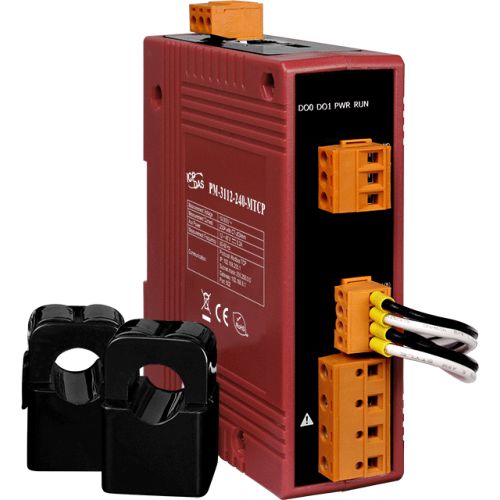

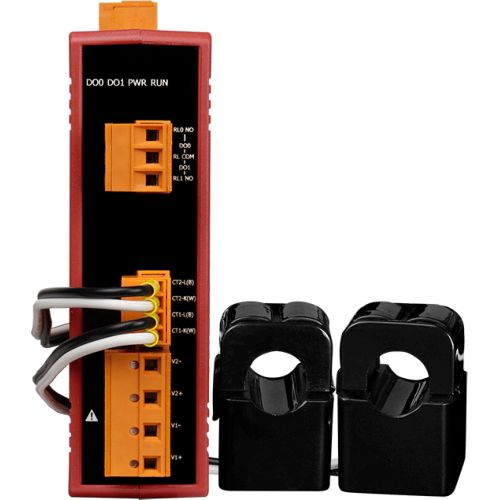

PM-3112-240-MTCP CR ICP DAS Power Meter

PM-3112-240-MTCP CR ICP DAS

PM-3112-240-MTCP CR ICP DAS

PM-3112-240-MTCP CR

Modbus TCP, 2 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 1.8 m) x 2

Quantity:

Price

€ 325,02

(VAT excluded)

€ 396,52(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 396,52

Availability: 15 business days

SKU: 118742

Model: PM-3112-240-MTCP CR

Need Help?


 Features

  • True RMS Power Measurements
  • Energy Analysis for 1P2W, 1P4W
  • Current Measurements Up to 200 A with Different CT Ratio
  • Voltage Measurements Up to 300 V
  • Clip-on CT for Easy Installation
  • W Accuracy Better than 0.5% (PF=1)
  • Supports Modbus TCP Protocol
  • Supports 2 Power Relay Output (Form A)
  • IEC 61010-1 and EN 61010-1


Introduction

ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3000 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3000 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.


Applications

Generator monitoring
Switchgear distribution systems
Energy Management
Power quality analysis


Specifications

AC Power Measurement

Wiring: 1P2W-2CT
Loops: Single-phase
Input Voltage: 10 ~ 300 V
Input Current: CTØ24 mm (0.15 A ~ 200 A)
Input Frequency: 50/60 Hz
W Accuracy: Better than 0.5% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate: 1 Second


CT

Includes CTs: 2
Type: Clip
Max. Current: 200 A
Inside Diameter: 24 mm
Leading Cable: 1.8 m


Ethernet

Protocol: Modbus TCP


Power

Input Range: +12 ~ 48 VDC
Consumption: 2W
Alarm Output: Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VD


Mechanical

Casing: Plastic
Dimensions (mm): 33 x 127 x 100 (W x L x H)
Installation: DIN-Rail Mounting


Environment

Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
