PM-3112-100 CR

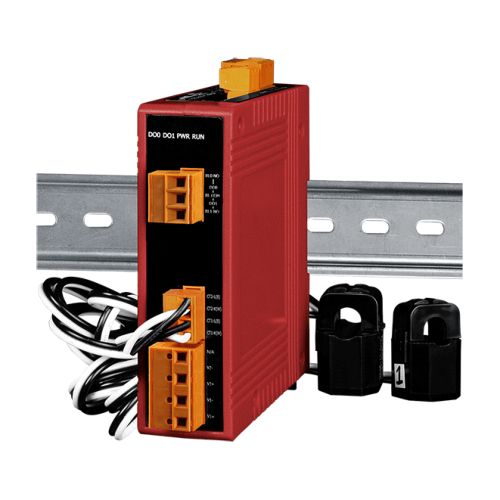

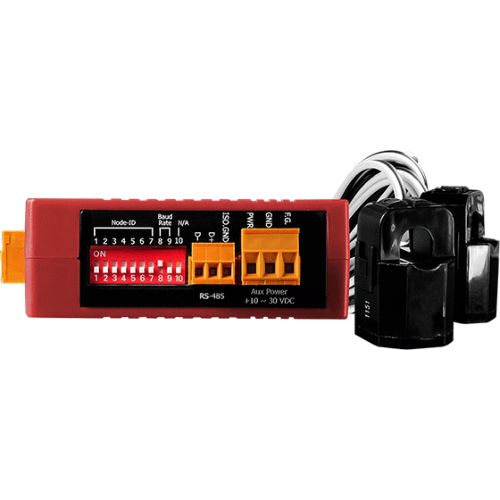

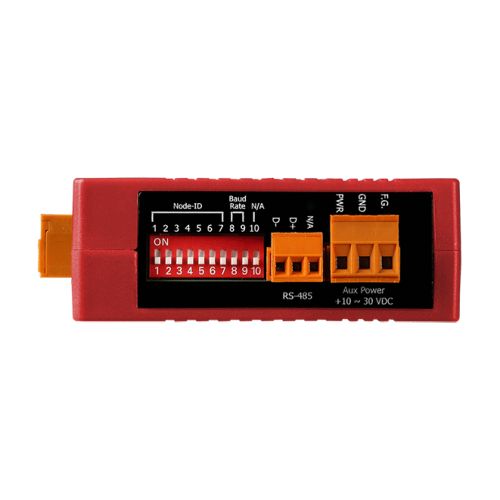

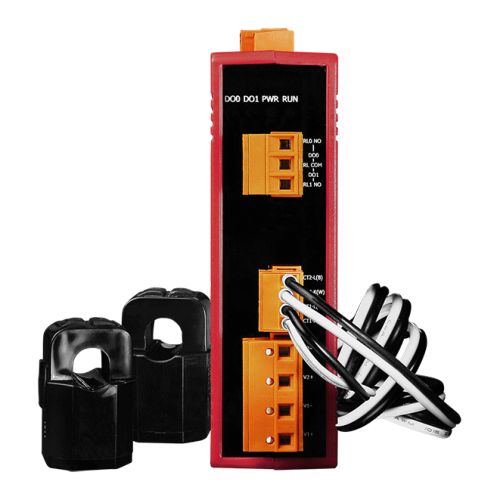

Modbus RTU, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 2
Free Shipping
Features
- True RMS Power Measurements
- Energy Analysis for 1P2W, 1P4W
- Current Measurements Up to 60 A
- Voltage Measurements Up to 300 V
- Clip-on CT for Easy Installation
- W Accuracy Better than 0.5% (PF=1)
- Supports Modbus RTU Protocol
- Supports 2 Power Relay Output (Form A)
- IEC 61010-1 and EN 61010-1
Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3000 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3000 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.
Applications
Generator monitoring
Switchgear distribution systems
Energy Management
Power quality analysis
Specifications
AC Power Measuremen
Wiring: 1P2W-2CT
Loops: Single-phase
Input Voltage: 10 ~ 300 V
Input Current: CTØ10 mm (0.05 A ~ 60 A)
Input Frequency: 50/60 Hz
W Accuracy: Better than 0.5% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate: 1 Second
CT
Includes CTs: 2
Type: Clip
Max. Current: 60 A
Inside Diameter: 10 mm
Leading Cable: 1.8 m
COM Ports
Ports: 1 x RS-485
Baud Rate: 9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format: N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol: Modbus RTU
Isolation: 3000 VDC
Power
Input Range: +12 ~ 48 VDC
Consumption: 2W
Alarm Output: Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VD
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 100 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
