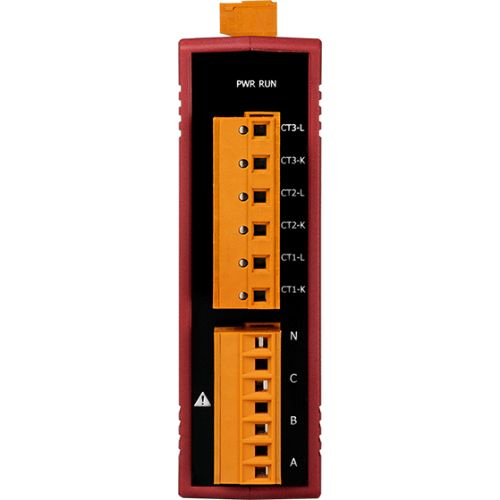

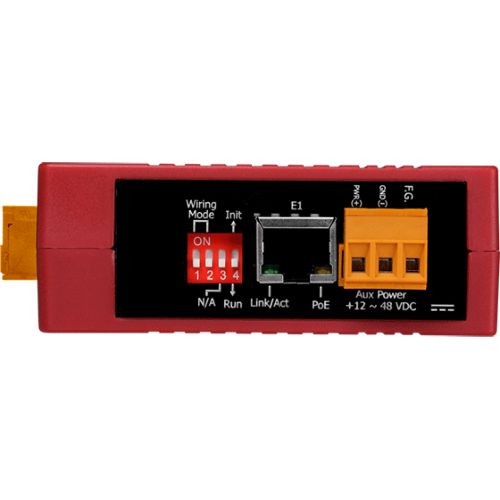

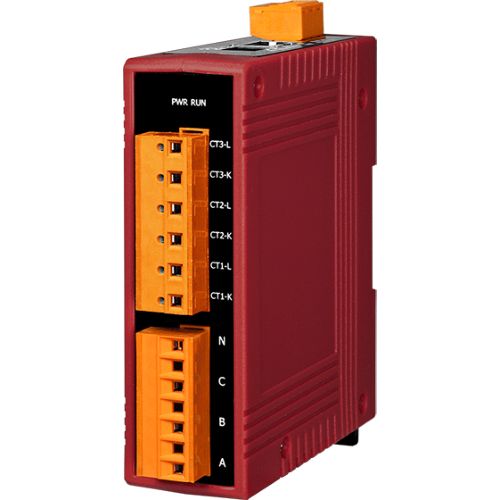

PM-3033-MTCP CR ICP DAS Power Meter



ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3033 series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-3033 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. Direct input from “secondary side 1A/5A” type CTs. Dedicated CTs are no longer needed, which lowers the cost of implementation. It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.



• Generator monitoring

• Switchgear distribution systems

• Energy Management

• Power quality analysis



Wiring: 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT

Loops: Three-phase

Input Voltage: 10 ~ 500 V

Input Frequency: 50/60 Hz

W Accuracy: Better than 0.5% (PF=1)

Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency

Data Update Rate: 1 Second



Includes CTs: 0



Protocol: Modbus TCP



Input Range: +12 ~ 48 VDC

Consumption: 2W



Casing: Plastic

Dimensions (mm): 33 x 127 x 100 (W x L x H)

Installation: DIN-Rail Mounting



Operating Temperature: -20 ~ +70 °C

Storage Temperature: -25 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
