PM-3033 CR ICP DAS Power Meter


PM-3033 CR

Modbus RTU, 3-phase power meter (1A/5A CT Input type)



€ 210,66

(VAT excluded)

€ 257,01(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 257,01

Availability: 15 business days

SKU: 118610

Model: PM-3033 CR

Need Help?


  • Bi-directional Energy
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Direct input of secondary side 1A/5A CT
  • Voltage Measurements Up to 500 V
  • W Accuracy Better than 0.5% (PF=1)
  • Total Harmonic Distortion (THD)
  • Supports Modbus RTU Protocol
  • IEC 61010-1 and EN 61010-1


ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3033 series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-3033 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. Direct input from “secondary side 1A/5A” type CTs. Dedicated CTs are no longer needed, which lowers the cost of implementation. It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.


• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis


AC Power Measurement

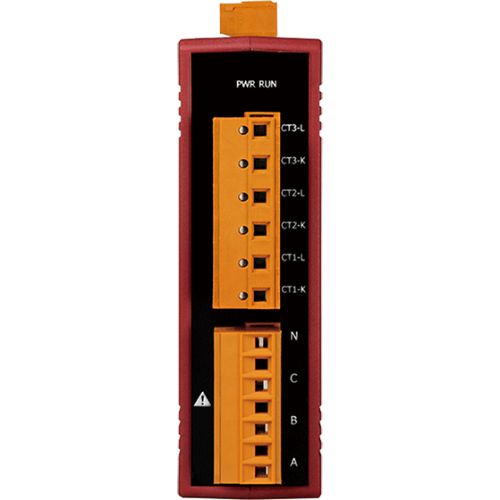

Wiring: 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops: Three-phase
Input Voltage: 10 ~ 500 V
Input Frequency: 50/60 Hz
W Accuracy: Better than 0.5% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate: 1 Second


Includes CTs: 0

COM Ports

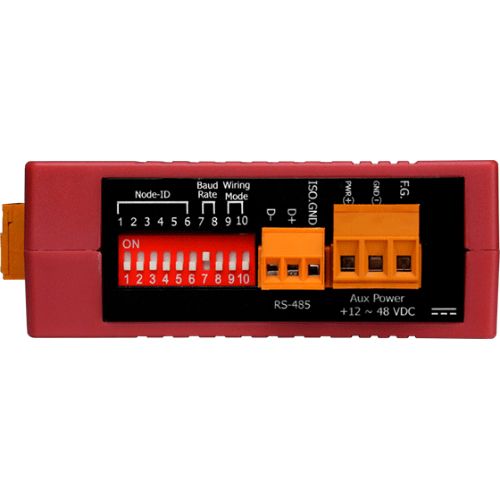

Ports: 1 x RS-485
Baud Rate: 9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format: N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol: Modbus RTU
Isolation: 3000 VDC


Input Range: +12 ~ 48 VDC
Consumption: 2W


Casing: Plastic
Dimensions (mm): 33 x 127 x 100 (W x L x H)
Installation: DIN-Rail Mounting


Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
