PM-2133D-400P CR ICP DAS Power Meter

PM-2133D-400P CR ICP DAS

PM-2133D-400P CR

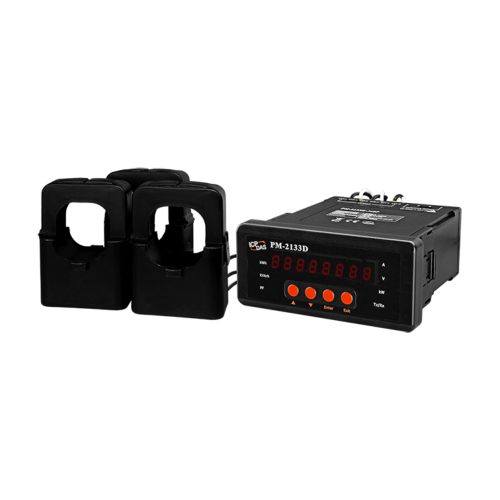

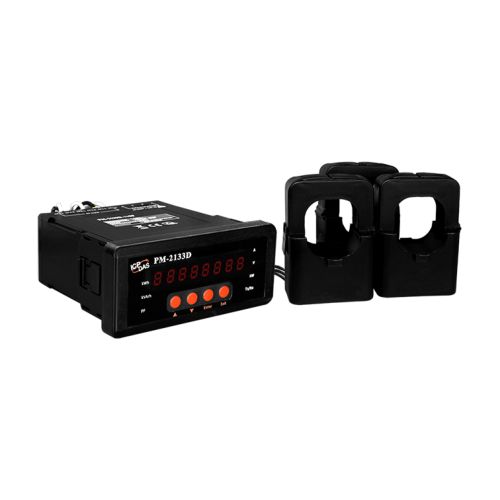

Modbus RTU, 3-phase power meter; includes 400A CT (Inside diameter 36 mm; wire lead 4 m) x 3



€ 635,00

(VAT excluded)

€ 774,70(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 774,70

Availability: 15 business days

SKU: 118907

Model: PM-2133D-400P CR

Need Help?


  • Bi-directional Energy
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 400 A with Different CT Ratio
  • Voltage Measurements Up to 500 V
  • Clip-on CT for Easy Installation
  • W Accuracy Better than 0.5% (PF=1)
  • Total Harmonic Distortion (THD)

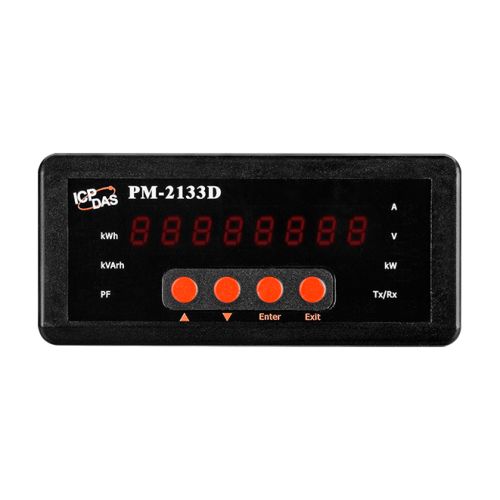

  • 8-Digit LED Display
  • Supports Modbus RTU Protocol


ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-2133D series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-2133D series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. This meter has LED display shows power.


• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis


AC Power Measuremen

Wiring: 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops: Three-phase
Input Voltage: 10 ~ 500 V
Input Current: CTØ36 mm (0.3 A ~ 400 A).
Input Frequency: 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz)
W Accuracy: Better than 0.5% (PF=1)
Power Parameter Measurement: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz)
Data Update Rate: 1 Second
LED Display: Yes, 8-digit


Includes CTs: 3
Type: Clip
Max. Current: 400 A
Inside Diameter: 36 mm
Leading Cable: 4 m

COM Ports

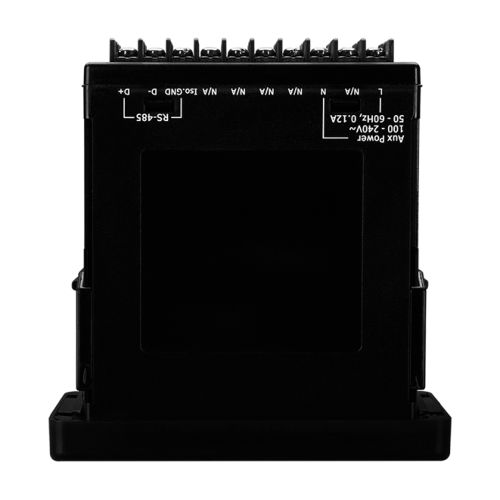

Ports: 1 x RS-485
Baud Rate: 9600, 19200 (default), 38400, 115200
Data Format: N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol: Modbus RTU
Isolation: 3000 VDC


Input Range: +85 ~ +264 VAC (277 VAC available)
Consumption: 6 W


Casing: Plastic
Dimensions (mm): 110 x 115 x 50 (W x L x H)
Installation: Panel Mounting


Operating Temperature: -20 ~ +70 °C
Storage Temperature: -25 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
