features and benefits

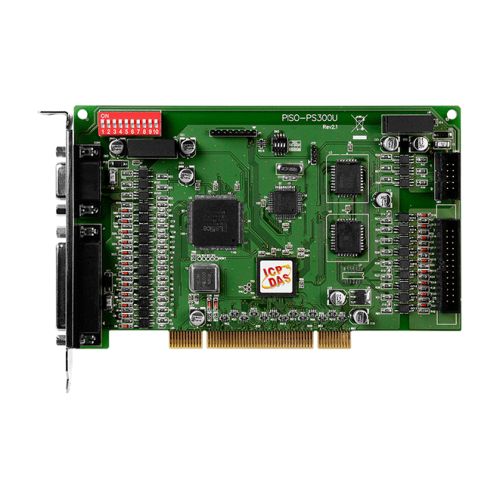

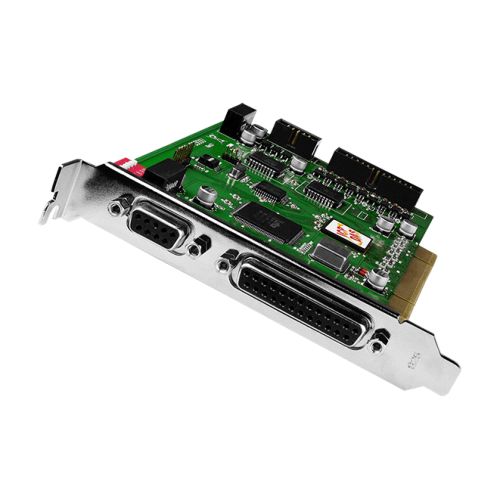

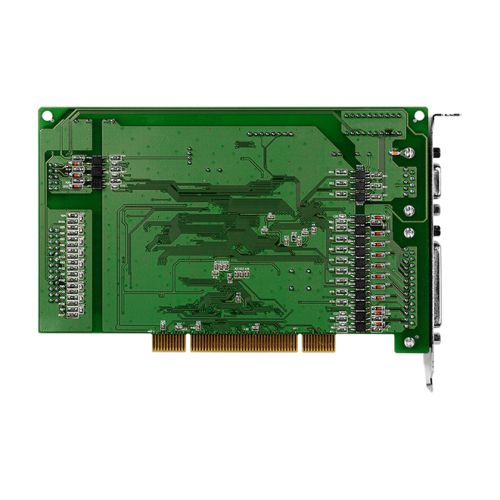

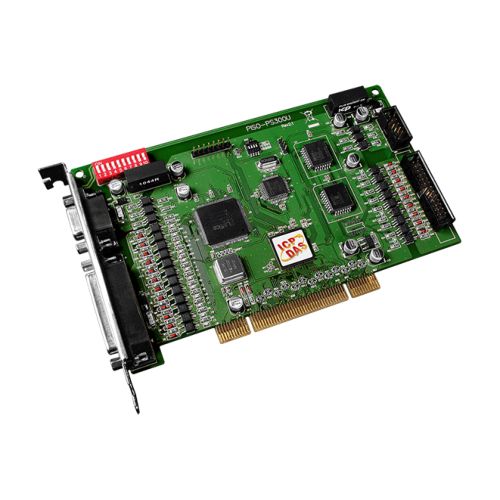

The PISO-PS300U is a 3-axis pulse command, servo motor control board.
The embedded CPU of the PISO-PS300U performs the motion commands transferred from a Host PC via a 2 KB FIFO buffer.
It also sends the position and status to the Host PC via a second 2 KB FIFO buffer.
These buffers provide time buffer and they are very suitable for Windows operating systems.
Device drivers and function libraries for DOS, Windows 7, and Windows XP/2000 are provided.
- Universal PCI Bus
- 3-axis pulse command servo motor board
- Embedded CPU
- Max. Pulse Rate: 1 MHz
- 3-axis linear interpolation, circular interpolation
- Programmable trapezoidal speed profile
- Programmable DDA cycle
- Hardware emergency stop
- Drivers for DOS, Windows XP/2000 and Windows 7
- 8 DI, 7 DO channels
specifications
Software| OS Support | Windows 7/XP/2000 32-bit only |
|---|
| SDK | DOS 6.2 |
|---|
Hardware| Connector | 9-pin Male and 25-pin Female D-Sub |
|---|
General| No. of Axes | 3 |
|---|
| Operation Mode | Semi-closed Loop |
|---|
| Speed Profile | T-curve |
|---|
| Position Control Mode | Incremental mode |
|---|
| Command Type | Pulse Command |
|---|
Axis I/O| Servo Interface Output | SVON |
|---|
| Mechanical Switch Input | Home, forward, | backward limit, EMG |
|---|
Encoder Input| Mode | A/B phase, CW/CCW, PULSE/DIR |
|---|
| Counting Rate | 1 MHz (Max.) |
|---|
| Counter Width | 32-bit |
|---|
Pulse Output| Mode | CW/CCW, PULSE/DIR |
|---|
| Counter Width | 32-bit |
|---|
| Rate | 1 MHz (Max.) |
|---|
Interpolation| Circular | Any 2 axes |
|---|
| Linear | Any 2 to 3 of 3 axes |
|---|
Digital Input| Channels | 8 |
|---|
| Isolation | 2500 Vrms optical isolation |
|---|
Digital Output| Channels | 7 |
|---|
| Isolation | 2500 Vrms optical isolation |
|---|
PC Bus| Type | Universal PCI bus |
|---|
Power| Consumption | +5 V @ 950 mA |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
