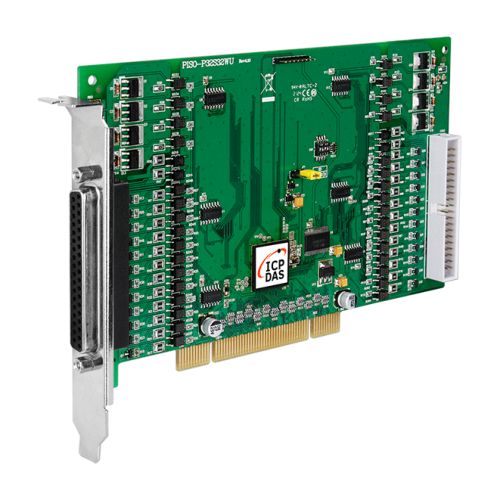

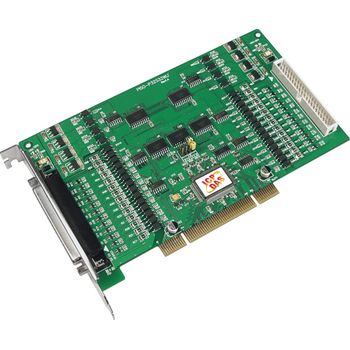

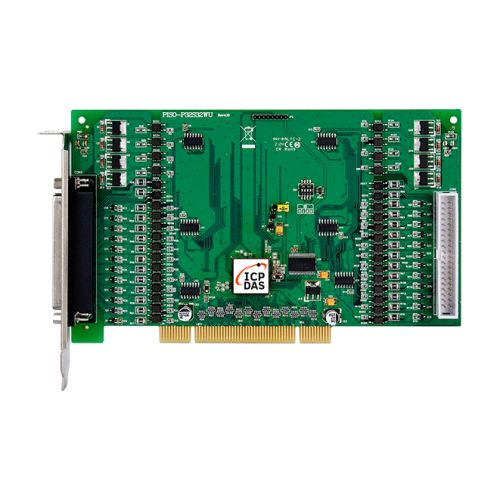

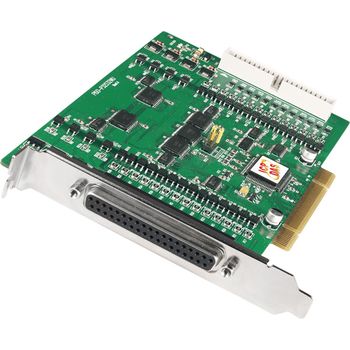

PISO-P32S32WU CR
Universal PCI, 32-ch Optical Isolated Digital input and 32-ch Open Collector Isolated (Sink, NPN) Digital output Board
- 32-CH optical-isolated digital input
- 32-CH optical-isolated digital output
- Isolation Voltage: 3750 Vrms (Using external power)
- Card ID: Jumper setting for multi-board identification (Version 1.5 or above)
- Open Collector: 500 mA (8-channel), 100 mA (24-channel), Current Sinking, NPN
PISO-P32S32WU has 32 channels of optical-isolated DI and 32 channels of optical-isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each digital output offers a NPN transistor and integral suppression diode for inductive load. PISO-P32S32WU requires external power to drive the D/I and D/O ports and supports Card ID (jumper) features for multi-board identification and supports both 5 V and 3.3 V PCI slot.
This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. PISO-P32S32WU has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels.
The PISO-P32S32WU supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit and Windows 7 32-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.
Interface
Bus PCI
Digital Input
Isolation Voltage 3750 Vrms (Using external power)
Digital Input Channels 32
Signal Type Sink or Source, Photo coupler isolated channel with common power or ground
On Voltage Level 9 ~ 24 V
Off Voltage Level 0 ~ 1 V
Time Counter
Counter Channels -
Signal Type -
Frequency -
Resolution -
Digital Output
Digital Output Channels 32
Signal Type Sink, Open Collector
Current 100 or 500 mA for one or all high driving channel(s)
Voltage -
Installation
Dimensions (WxLxH) -
Operating Temperature 0 to 70°C
I/O Connector Type -
