features and benefits

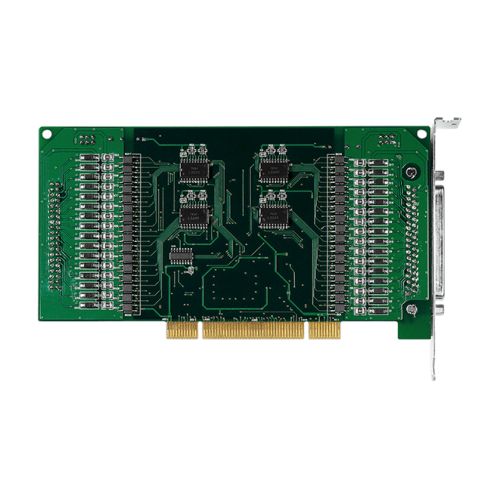

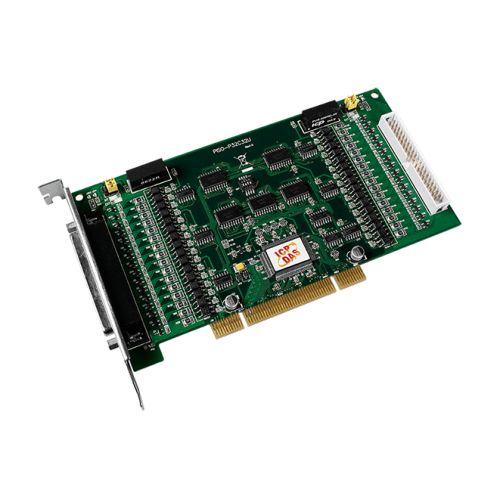

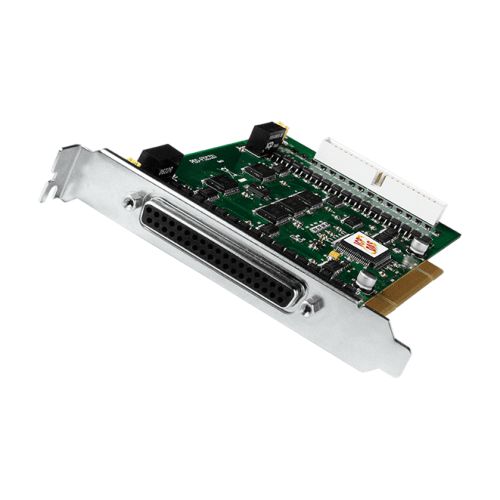

The PISO-P32C32U-5V universal PCI card supports 3.3 V/5 V PCI bus.
These cards provide 32 channels of Isolated DIs and 32 channels of Isolated DOs, arranged into four isolated banks.
Each input channel uses a photo-coupler input which allows either internal isolated power supply or external power selected by jumper.
Each DO offers a Darlington transistor.
The power supply of the input port may use the external power or the power from the PC side via DC/DC converter.
The power supply of the output port should use the external power.
The board eliminates ground-loop problems and isolates the host computer from damaging voltages. The PISO-P32C32U-5V also adds a Card ID switch.
Users can set Card ID on a board and recognize the board by the ID via software when using two or more PISO-P32C32U-5V cards in one computer. The cards support various OS versions, such as Linux, DOS, Windows.
DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
- Universal PCI (3.3 V/5 V) Interface
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Sink, NPN)
- Supports DO Status Readback (Register Level)
- 3750 Vrms Photo-isolation Protection
- Four Isolated Banks
- Built-in DC/DC Converter with 3000 VDC Isolation
- Supports Card ID (SMD Switch)
specifications
Hardware| Card ID | Yes (4-bit) for Version 1.1 or above |
|---|
| Connector | Female DB37 x 1 | 40-pin box header x 1 |
|---|
Digital Input| Channels | 32 |
|---|
| Type | Wet Contact | Photocoupler |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | Dry: Close to GND | Wet: 5 ~ 12 V(Min. 3.5 V; Max. 16 V) |
|---|
| OFF Voltage Level | Dry: Open | Wet: 0 ~ 1 V |
|---|
| Response Speed | 4 kHz (Typical) |
|---|
| Trigger Mode | Static Update |
|---|
| Isolation | 3750 Vrms (Using external power) |
|---|
Digital Output| Channels | 32 |
|---|
| Type | Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink (NPN) |
|---|
| Operation Mode | Static Update |
|---|
| Load Current | 100 mA/+30 V for each channel @ 100% duty |
|---|
| Response Speed | 4 kHz (Typical) |
|---|
| Isolation | 3750 Vrms |
|---|
PC Bus| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
|---|
| Data Bus | 8-bit |
|---|
Power| Consumption | 600 mA @ +5 V |
|---|
Mechanical| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
