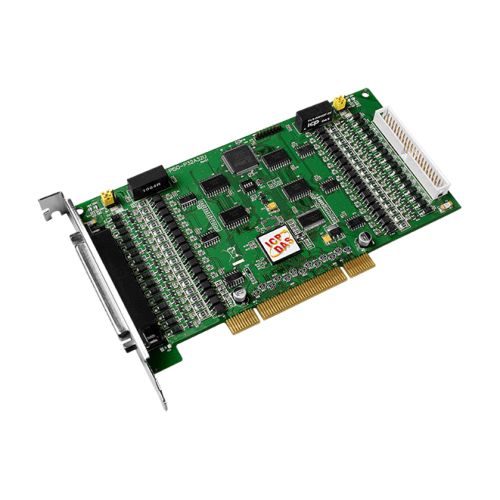

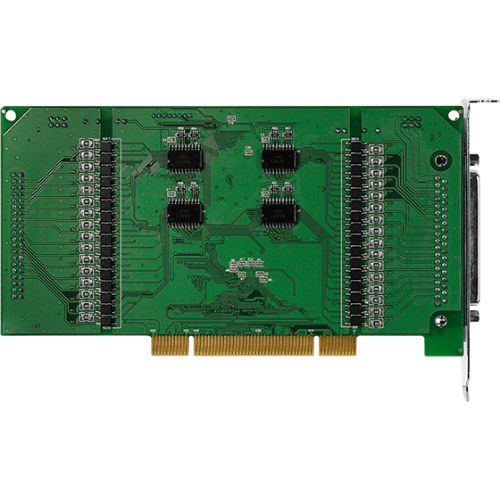

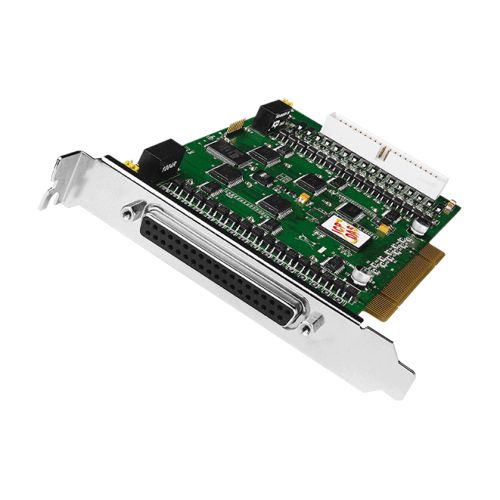

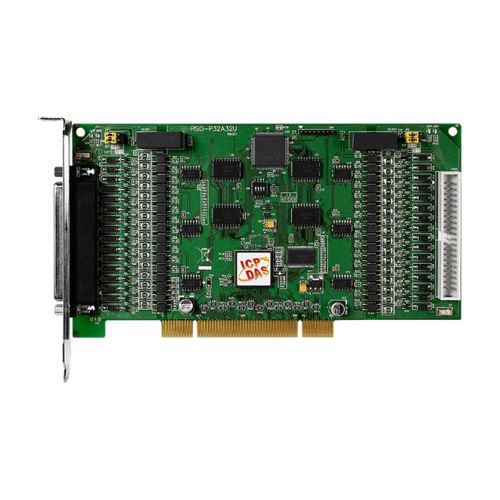

PISO-P32A32U-5V CR, Universal PCI, 32-ch Optical Isolated Digital input and 32-ch Open Collector Isolated (Source, PNP) Digital output Board Includes one CA-4037B cable and two CA-4002 D-Sub connectors
PISO-P32A32U-5V CR
Universal PCI, 32-ch Optical Isolated Digital input and 32-ch Open Collector Isolated (Source, PNP) Digital output Board Includes one CA-4037B cable and two CA-4002 D-Sub connectors
Features
- Universal PCI (3.3 V/5 V) Interface
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Source, PNP)
- Supports DO Status Readback (Register Level)
- 3750 Vrms Photo-isolation Protection
- Built-in DC/DC Converter with 3000 VDC Isolation
- Supports Card ID (SMD Switch)
Introduction
The PISO-P32A32U-5V universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 32 optically-isolated DI channels and 32 optically-isolated DO channels, arranged into four isolated banks. Each DO channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0-15 are allocated to Group A, while channels 16-31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32U-5V can be powered by either an internal current source or an external power supply, while the input for the PISO-P32A32U-5V operates using an external power supply only.
Each Digital Output channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0 - 15 are allocated to Group A, while channels 16 - 31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32-5V can be powered by using either an internal current source or an external power supply, while the input for the PISO-P32A32U operates using an external power supply only.
The PISO-P32A32U-5V also include an onboard Card ID switch that enables the board to be recognized via software if two or more boards in the same computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Applications
Factory automation
Product test
Laboratory automation
Specifications
Hardware
Card ID: Yes (4-bit) for Version 4.0 or above
Connector: Female DB37 x 1
40-pin box header x 1
Digital Input
Channels: 32
Type: Wet Contact
Photocoupler
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: Dry: Close to GND
Wet: 5 ~ 12 V (Min. 3.5 V; Max. 16 V)
OFF Voltage Level: Dry: Open
Wet: 0 ~ 1 V
Response Speed: 4 kHz (Typical)
Trigger Mode: Static Update
Isolation: 3750 Vrms (Using external power)
Digital Output
Channels: 32
Type: Open Emitter
Sink/Source (NPN/PNP): Source (PNP)
Operation Mode: Static Update
Load Voltage: 100 mA/+30 V for each channel @ 100% duty
Response Speed: 4 kHz (Typical)
Isolation: 3750 Vrms
PC Bus
Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus: 8-bit
Power
Consumption: 600 mA @ +5 V
Mechanical
Dimensions (mm): 105 x 180 x 22 (W x L x D)
Environment
Operating Temperature: 0 ~ +60°C
Storage Temperature: -20 ~ +70°C
Humidity: 5 ~ 85% RH, Non-condensing
