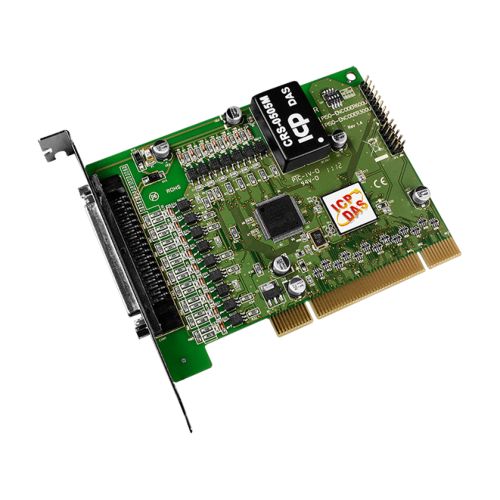

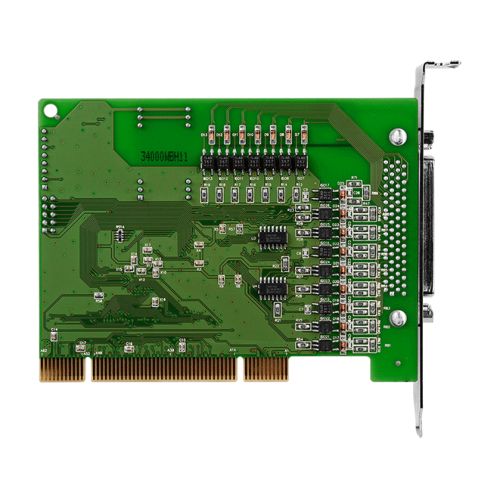

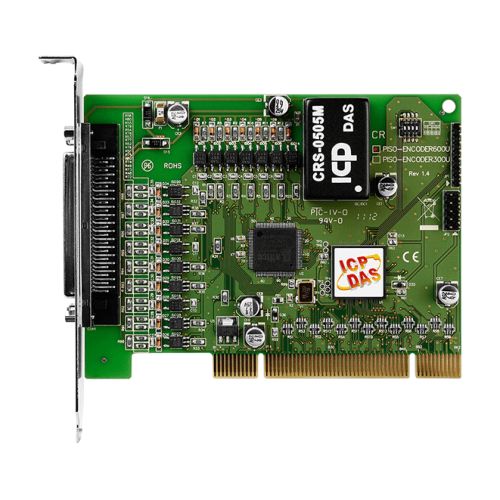

PISO-Encoder600U CR, Universal PCI Bus 6-axis Encoder Input Card Includes: CA-SC68, SCSI-II 68-pin Male Connector (Solder Type) with Cover
PISO-Encoder600U CR
Universal PCI Bus 6-axis Encoder Input Card Includes: CA-SC68, SCSI-II 68-pin Male Connector (Solder Type) with Cover
Features
- Universal PCI bus
- 6-axis encoder counter
- True 32-bit counter
- Encoder Counting Rate: 4 MHz (Max.)
- Third-order internal digital filter
- Counting Mode: Quadrant, CW/CCW, PULSE/DIR
- A+, A-, B+, B-, C+, C- inputs
- Programmable reset counter function
- Index (C channel) reset counter function
- Hardware reset (HR1 ~ HR6), reset counter function
- 68-pin SCSI-II connector
Introduction
The PISO-ENCODER600U contains a 6-axis encoder counter and each axis has a 32-bit, true counter with a maximum encoder counting rate of 4 MHz. The counting mode can be selected from three types: 1. Quadrant mode, 2. CW/CCW mode, and 3. PULSE/ DIR mode. There are also three 3 kinds of counter reset modes provided: 1. Register Reset, 2. Index Reset, and 3. Hardware Reset. The "Index Reset" mode resets by using a C+/C- channel, which will reset the counter on each revolution. The "Hardware Reset" mode resets the counter using an external pin (HR1 ~ HR6). The HR1 ~ HR6 pins can also be used as digital input. The PISO-ENCODER600U also provides 8-ch digital outputs. 2500 Vrms photo-couplers are used to isolate the digital I/O to prevent high voltages from affecting the system. Device drivers and function libraries for DOS, Windows 7 and Windows XP/2000 are provided.
Applications
- Semiconductor Manufacturing
- Component Inspection
- Manufacturing Quality Control
- Food and Beverage Inspection
- Microscopy and Medical Imaging
- Biometrics Applications
- X-Y-Z Table
- Fix-pitch Stamping Machinery
- Transfer Machinery
- Spinner
- Load/Unload
Specifications
Software
OS Support: Windows 7/10 32/64-bit
Windows XP/2000 32-bit
SDK: DOS 6.2 , Linux 2.6
Labview 8.5 and above
Hardware

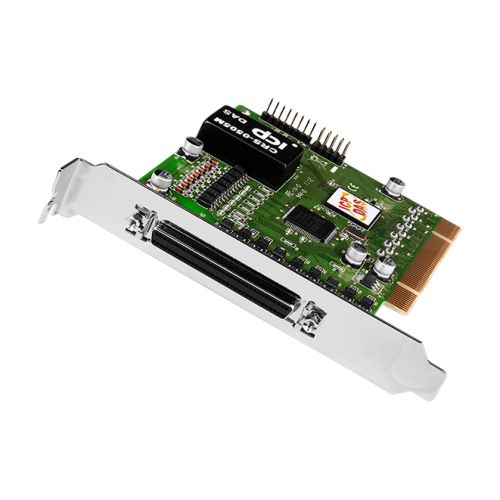

Connector: 68-pin SCSI-II female connector
General
No. of Axes: 6
Encoder Input
Mode: Quadrant, CW/CCW, PULSE/DIR
Counting Rate: 4 MHz (Max.)
Pulse Output
Counter Width: 32-bit
Digital Input
Isolation: 2500 Vrms optical isolation
Digital Output
Channels: 8
Isolation: 2500 Vrms optical isolation
PC Bus
Type: Universal PCI bus
Power
Consumption: +5 V @ 500 mA
Mechanical
Dimensions (mm): 120.4 mm x 90.8 mm
Environment
Operating Temperature: 0 ~ +60°C
Storage Temperature: -20 ~ +80°C
Humidity: 5 ~ 85% RH, non-condensing
