features and benefits

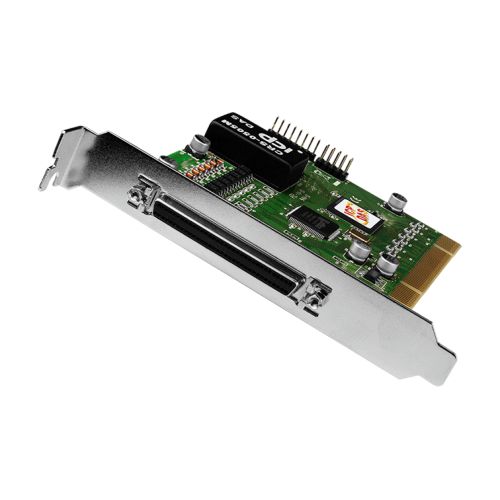

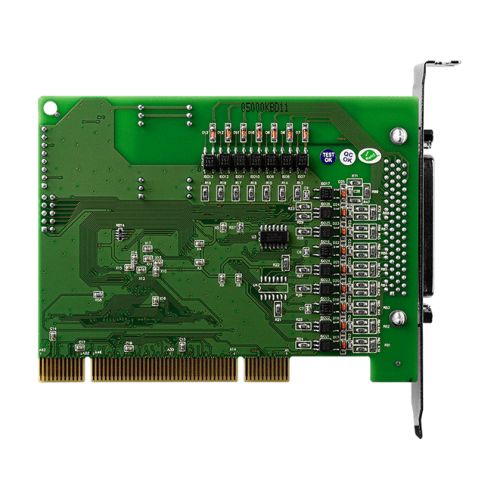

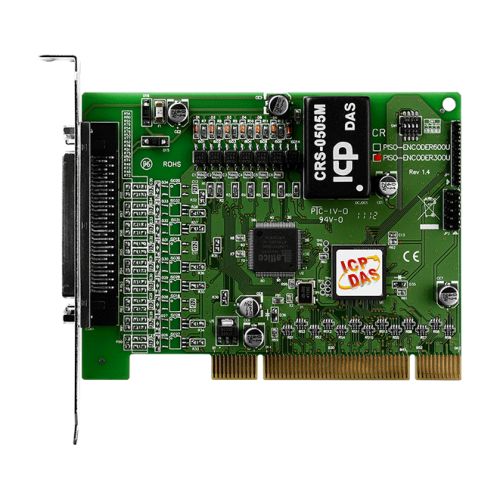

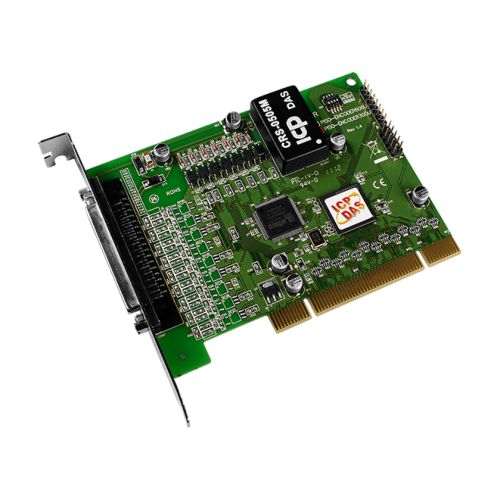

The PISO-ENCODER300U contains a 3-axis encoder counter and each axis has a 32-bit, true counter with a Encoder Counting Rate of 4 MHz (Max.).
The counting mode can be selected from three types: 1.
Quadrant mode, 2.
CW/CCW mode, and 3.
PULSE/ DIR mode.
There are also three 3 kinds of counter reset modes provided: 1.
Register Reset, 2.
Index Reset, and 3.
Hardware Reset.
The Index Reset mode resets by using a C+/C- channel, which will reset the counter on each revolution.
The Hardware Reset mode resets the counter using an external pin (HR1 ~ HR6).
The HR1 ~ HR6 pins can also be used as digital input.
The PISO-ENCODER300U also provides 8-ch digital outputs.
2500 Vrms photo-couplers are used to isolate the digital I/O to prevent high voltages from affecting the system.
Device drivers and function libraries for DOS, Windows 7 and Windows XP/2000 are provided.
- Universal PCI bus
- 3-axis encoder counter
- True 32-bit counter
- Encoder Counting Rate: 4 MHz (Max.)
- Third-order internal digital filter
- Counting Mode: Quadrant, CW/CCW, PULSE/DIR
- A+, A-, B+, B-, C+, C- inputs
- Programmable reset counter function
- Index (C channel) reset counter function
- Hardware reset (HR1 ~ HR6), reset counter function
- 68-pin SCSI-II connector
specifications
Software| OS Support | Windows 7/10 32/64-bit | Windows XP/2000 32-bit |
|---|
| SDK | DOS 6.2 , Linux 2.6 | Labview 8.5 and above |
|---|
Hardware| Connector | 68-pin SCSI-II Female |
|---|
Encoder Input| Mode | Quadrant, CW/CCW, PULSE/DIR |
|---|
| Counting Rate | 4 MHz (Max.) |
|---|
Pulse Output| Counter Width | 32-bit |
|---|
Digital Input| Channels | 6 |
|---|
| Isolation | 2500 Vrms optical isolation |
|---|
Digital Output| Channels | 8 |
|---|
| Isolation | 2500 Vrms optical isolation |
|---|
PC Bus| Type | Universal PCI bus |
|---|
Power| Consumption | +5 V @ 500 mA |
|---|
Mechanical| Dimensions (mm) | 120.4 mm x 90.8 mm |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +80°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
