features and benefits

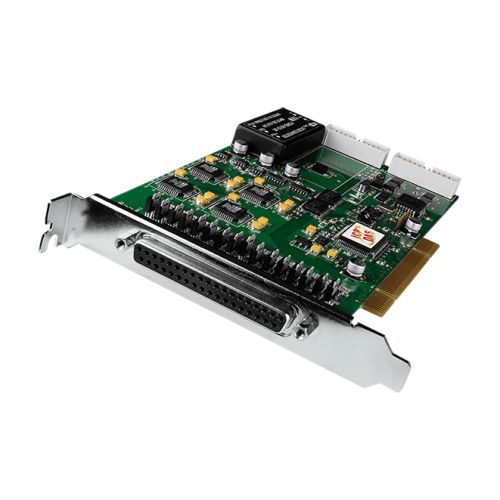

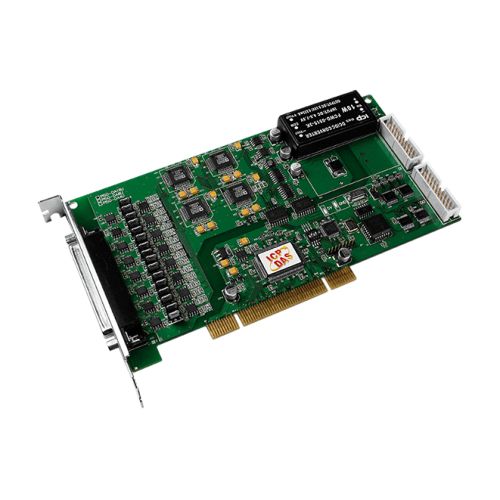

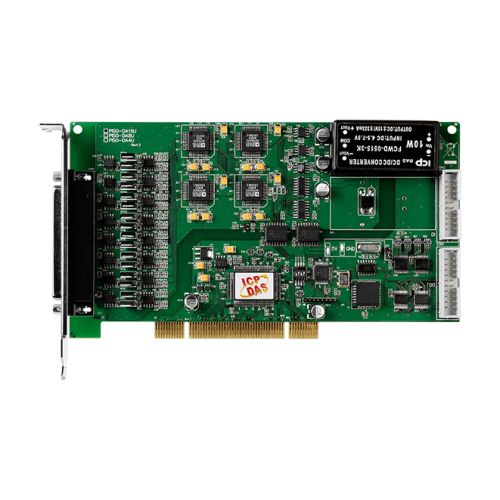

The PISO-DAxU series card is designed as an easy replacement for the PIO-DA series without requiring any modification to the software or the driver.
The PISO-DAxU series provides an additional high-voltage isolation design that protects the Host PC from damage due to unexpected power surges, while the built-in high-quality isolation components provide the boards with 2500 VDC bus-type isolation.
The voltage output range for the PISO-DAxU series is from -10 V to +10 V, and the current output range is from 0 to 20 mA.
In addition, the PISO-DAxU series also features the following innovative advantages: 1.
Accurate and easy-to-use calibration: ICP DAS provides a software calibration function rather than manual calibration so that jumpers and trim-pots are no longer required for calibration, and the calibration data can be saved in the EEPROM for long-term use. 2.
Individual channel configuration: Each channel can be individually configured as either voltage or current output. 3.
Card ID: ICP DAS has also included an onboard Card ID switch on the PISO-DAxU series that enables the board to be recognized via software if two or more boards are installed in the same computer.
- Universal PCI (3.3 V/5 V) Interface
- 14-bit, 16-channel Analog Output
- 2500 VDC Bus and Power Isolation Protection
- Built-in DC/DC Converter with 3000 VDC Protection
- Software Calibration
- Two Timer-triggered Interrupt Sources
- Double-buffered DA Latch
- Supports Card ID (SMD Switch)
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Function for DI Channels
specifications
Hardware| Card ID | Yes (4-bit) |
|---|
| Connector | Female DB37 x 1 | 20-pin Box header x 2 |
|---|
Analog Output| Channels | 16 |
|---|
| Range | Voltage: ±10 V | Current: 0 ~ 20 mA |
|---|
| Resolution | 14-bit |
|---|
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
|---|
| Response Time | 333 kHz (Typical) |
|---|
| Voltage Output Capability | ±5 mA |
|---|
| Slew Rate | 0.71 V/μs |
|---|
| Isolation | 2500 V (Bus Type) |
|---|
| Operation Mode | Static Update |
|---|
Digital Input| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.4 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 2.4 mA @ 0.8 V | Source: 0.8 mA @ 2.0 V |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
Timer/Counter/Frequency| Channels | 3 |
|---|
| Type | 5 V/TTL |
|---|
| Resolution | 16-bit |
|---|
| Reference Clock | Internal: 4 MHz |
|---|
PC Bus| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
|---|
| Data Bus | 8-bit |
|---|
Power| Consumption | 3000 mA @ +5 V |
|---|
Mechanical| Dimensions (mm) | 105.06 x 188 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
