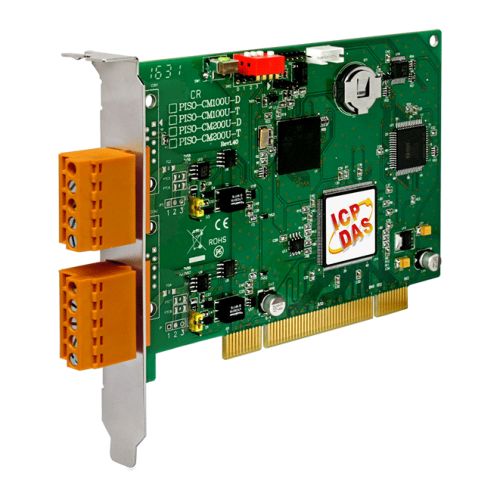

PISO-CM200U-T CR ICP DAS CAN Card Universal




2-port Programmable CAN Universal PCI Card with 5-Pin Screw Terminal Connector



€ 475,50

(VAT excluded)

€ 580,11(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 580,11

Availability: 15 business days

SKU: 118849

Model: PISO-CM200U-T CR

Need Help?


  • Embedded 32-bit microprocessor
  • NXP 82C250 CAN transceiver
  • Bosch C_CAN controller
  • Supports both CAN 2.0A and CAN 2.0B specifications
  • Storage Timestamp with a precision of at least ±1 ms
  • Board number selectable via DIP switch
  • Dual port RAM communication mechanism
  • Embedded RTC (real time clock)
  • Transmission/reception buffer for up to 256 CAN messages
  • Allows a maximum of 5 sets of cyclic transmission messages
  • Cyclic transmission message precision: ±1ms
  • Easy to update firmware


A Controller Area Network (CAN) is a serial communication system based on the CAN protocol that enables efficient distributed real-time control combined with a very high level of security. The CAN protocol is especially suited for structuring "intelligent" device networks, as well as for building automatic control environments that contain sensors and actuators within a system or sub-system. In a CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.
The PISO-CM200U is a very powerful and economic solution for an active CAN board, containing two CAN channels that cover a wide range of CAN applications. The 32-bit on-board microcontroller allows the filtering, pre-processing, and storage of CAN messages (with a timestamp), as well as real-time transmission of CAN messages, among many other features.
An added benefit is that custom CAN Bus applications can be developed using the PISO-CM200U library. When the PISO-CM200U is active, data exchange between the custom application and the CAN Bus firmware is performed via the memory mapping method on the PISO-CM200U.



Driver: Windows XP/7/8.1/10 (32-bit/64-bit) OS
SDK: C#.Net, VB.Net, VC++.Net

LED Indicators

Status: 1 x CAN status
1 x Operating mode

PC Bus

Type: Universal PCI, 5 V, 33 MHz, 32-bit, plug and play
Board No.: Configurable via DIP switch


Controller: Bosch C_CAN
Ports: 2
Baud Rate: 10 k ~ 1 M bps
Isolation: 3000 VDC for DC-to-DC, 3000 Vrms for photo-couple
Terminal Resistor: Jumper for 120 Ω terminal resistor


Consumption: 800 mA @ 5 V


Dimensions (mm): 150 x 22 x 121 (W x L x H)


Operating Temperature: 0 ~ +60 °C
Storage Temperature: -20 ~ +70 °C
Humidity: 5 ~ 85% RH, Non-condensing
