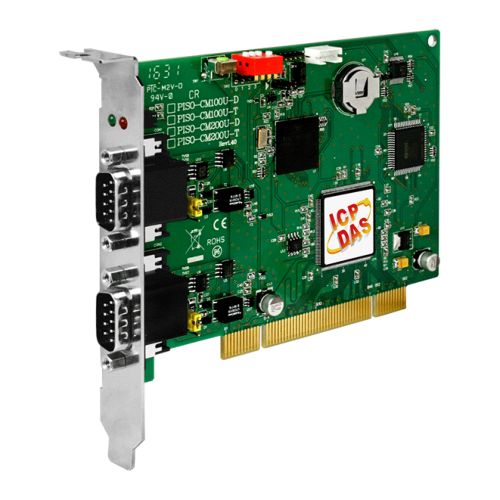

PISO-CM200U-D CR, 2-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector
PISO-CM200U-D CR
2-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector
Free Shipping
Features
- Embedded 32-bit microprocessor
- NXP 82C250 CAN transceiver
- Bosch C_CAN controller
- Supports both CAN 2.0A and CAN 2.0B specifications
- Storage Timestamp with a precision of at least ±1 ms
- Board number selectable via DIP switch
- Dual port RAM communication mechanism
- Embedded RTC (real time clock)
- Transmission/reception buffer for up to 256 CAN messages
- Allows a maximum of 5 sets of cyclic transmission messages
- Cyclic transmission message precision: ±1ms
- Easy to update firmware
Introduction
A Controller Area Network (CAN) is a serial communication system based on the CAN protocol that enables efficient distributed real-time control combined with a very high level of security. The CAN protocol is especially suited for structuring "intelligent" device networks, as well as for building automatic control environments that contain sensors and actuators within a system or sub-system. In a CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.
The PISO-CM200U is a very powerful and economic solution for an active CAN board, containing two CAN channels that cover a wide range of CAN applications. The 32-bit on-board microcontroller allows the filtering, pre-processing, and storage of CAN messages (with a timestamp), as well as real-time transmission of CAN messages, among many other features.
An added benefit is that custom CAN Bus applications can be developed using the PISO-CM200U library. When the PISO-CM200U is active, data exchange between the custom application and the CAN Bus firmware is performed via the memory mapping method on the PISO-CM200U.
Specifications
Software
Driver: Windows XP/7/8.1/10 (32-bit/64-bit) OS
SDK: C#.Net, VB.Net, VC++.Net
LED Indicators
Status: 1 x CAN status
1 x Operating mode
PC Bus
Type: Universal PCI, 5 V, 33 MHz, 32-bit, plug and play
Board No.: Configurable via DIP switch
CAN
Controller: Bosch C_CAN
Ports: 2
Baud Rate: 10 k ~ 1 M bps
Isolation: 3000 VDC for DC-to-DC, 3000 Vrms for photo-couple
Terminal Resistor: Jumper for 120 Ω terminal resistor
Power
Consumption: 800 mA @ 5 V
Mechanical
Dimensions (mm): 150 x 22 x 121 (W x L x H)
Environment
Operating Temperature: 0 ~ +60 °C
Storage Temperature: -20 ~ +70 °C
Humidity: 5 ~ 85% RH, Non-condensing
