PISO-CM100U-D CR ICP DAS CAN Card Universal

PISO-CM100U-D CR ICP DAS

PISO-CM100U-D CR ICP DAS

PISO-CM100U-D CR

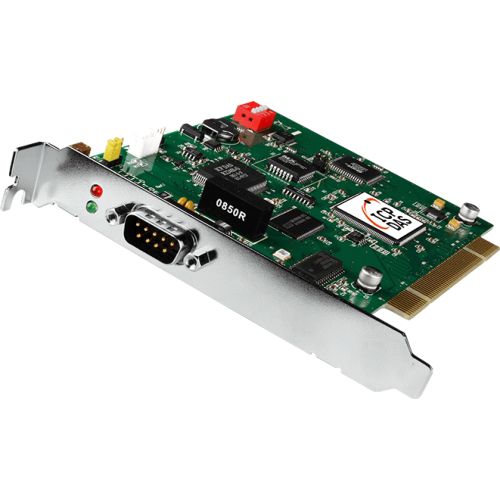

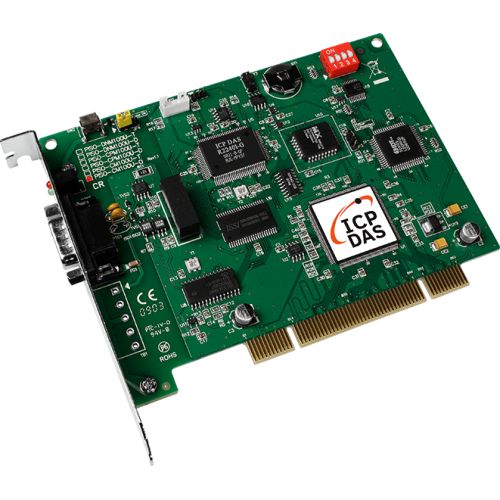

1-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector

Quantity:

Price

€ 346,09

(VAT excluded)

€ 422,23(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 422,23

Availability: 15 business days

SKU: 4674

Model: PISO-CM100U-D CR

Need Help?


  • Microprocessor inside with 80186, 80MHz
  • 82C250 CAN transceiver
  • SJA1000T CAN controller
  • Fully compatible with ISO 11898-2 standard
  • Support both CAN 2.0A and CAN 2.0B
  • Timestamp with at least ±1ms precision
  • DIP switch to select board number
  • Dual port RAM communication mechanism
  • RTC (real time clock) inside

The PISO-CM100U represents a very powerful and economic solution of an active CAN board with one CAN channel, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. Under the effect of the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. In addition, users can develop their own CAN application by using the PISO-CM100U library. When the PISO-CM100U is active, the data exchange between users’ application and CAN bus firmware is performed via the memory mapping method of the PISO-CM100U.

Hardware

CPU: 80186, 80 MHz or compatible
SRAM/Flash/EEPROM: 512 KB / 512 KB / 16 KB
DPRAM: 8 KB
NVRAM: 31 bytes (battery backup, data valid for up to 10 years)
RTC (Real Time Clock): Yes

Bus Interface

Type: Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play
Board No. By DIP switch

CAN Interface

Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Channel number: 1
Connector: 9-pin male D-Sub
Baud Rate (bps): 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor: Jumper for 120 Ω terminator resistor

LED

Round LED Rx/Tx LED, ERR LED

Software

Driver: Windows 2K/XP/7(X32)
Library: VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0

Power

Power Consumption: 300 mA @ 5 V

Mechanism

Dimensions: 138mm x 22mm x 105mm (W x L x H)

Environment

Operating Temp:  0 ~ 60 °C
Storage Temp:  -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
