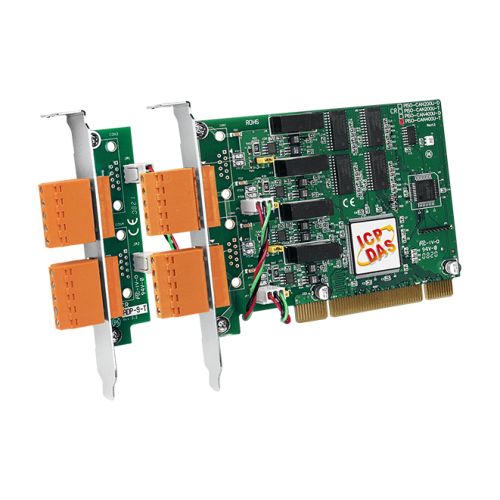

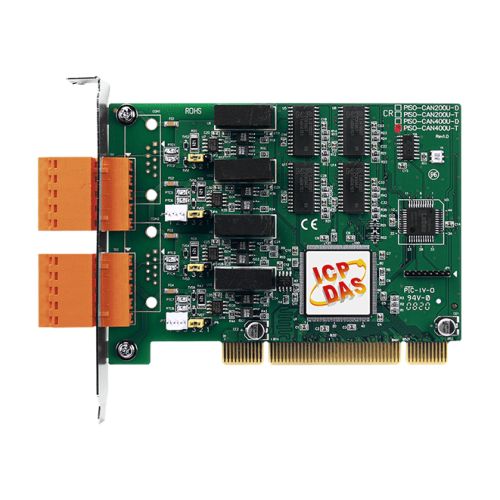

PISO-CAN400U-T CR
4-Port CAN Universal PCI board with 5-pin Screw Terminal Connectors
- Four independent CAN bus 2.0A/2.0B communication ports
- Compatible with CAN specification 2.0 parts A and B
- On-board optical isolation protection
- Programmable transfer rate up to 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Jumper select 120 Ω terminator resistor for each port
- Direct memory mapping to the CAN controllers
- 33MHz 32bit 5V PCI bus (V2.1) plug and play
The PISO-CAN400 can represents an economic solution of an active CAN board. It has four independent CAN bus communication ports with 5-pin screw terminal connector or 9-pin male D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN400 uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5 V PCI slot and supported truly “Plug & play”.
Bus Interface
Type: Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play
CAN Interface
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Channel number: 4
Connector: 5-pin screwed terminal block
Baud Rate (bps): 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
Terminator Resistor: Jumper for 120 Ω terminator resistor
Power
Power Consumption: 300 mA @ 5 V
Software
Driver: Windows 98/ME/NT/2K/XP/7, Linux 2.6.37, LabView, DASYLab
Library: VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0
Mechanism
Dimensions: 126mm x 22mm x 85mm (W x L x H)
Environment
Operating Temp: 0 ~ 60 ℃
Storage Temp: -20 ~ 70 ℃
Humidity: 5 ~ 85% RH, non-condensing
