features and benefits
The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security.
It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system.
In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

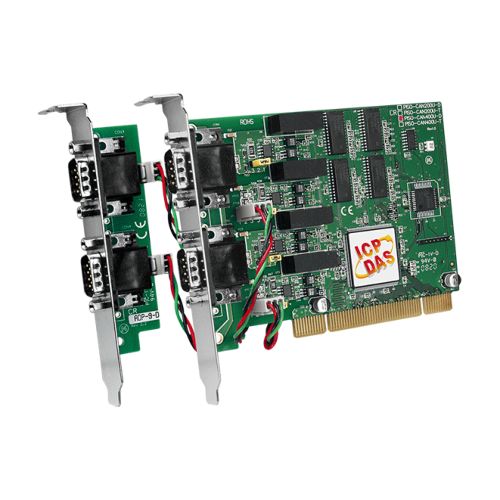

As standalone CAN controller, PISO-CAN400U-D can represents an economic solution of an active CAN board.
It has two or four independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.
Besides, PISO-CAN400U-Duses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function.
It can be installed in a 5V PCI slot and supported truly Plug & play.
- Four independent CAN bus 2.0A/2.0B communication ports
- Compatible with CAN specification 2.0 parts A and B
- On-board optical isolation protection
- Programmable transfer rate up to 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Jumper select 120Ω terminal resistor for each port
- Direct memory mapping to the CAN controllers
- 33MHz 32bit 5V PCI bus (V2.1) plug and play
- Universal PCI card, supports both 5V and 3.3V PCI bus
- We have verified to drive 100 CAN nodes at the same time
specifications
SoftwareDriver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
---|
SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
---|
PC BusType | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
---|
CANController | NXP SJA1000T with 16 MHz clock |
---|
Ports | 4 |
---|
Baud Rate | 10 k ~ 1 M bps |
---|
Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
---|
Terminal Resistor | Jumper for 120 Ω terminal resistor |
---|
PowerConsumption | 300 mA @ 5 V |
---|
MechanicalDimensions (mm) | 126 x 85 x 22 (W x L x D) |
---|
EnvironmentOperating Temperature | 0 ~ +60 °C |
---|
Storage Temperature | -20 ~ +70 °C |
---|
Humidity | 5 ~ 85% RH, Non-condensing |
---|
