PISO-813U CR ICP DAS Universal PCI Boards

The PISO-813U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PISO-813U card is designed as a drop-in replacement for the PISO-813, and users can replace the PISO-813 by the PISO-813U directly without software/driver modification.
The PISO-813U card is bus-typed isolated A/D board for IBM or compatible PC and supports 3.3 V/5 V PCI bus. They feature 12-bit 32 single-ended analog inputs, 3750 Vrms bus-typed isolation protection and 10 kS/s data acquisition under DOS and Windows. It is the most cost effective isolated A/D board for the universal PCI in the world.
The PISO-813U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PISO-813U cards in one computer.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

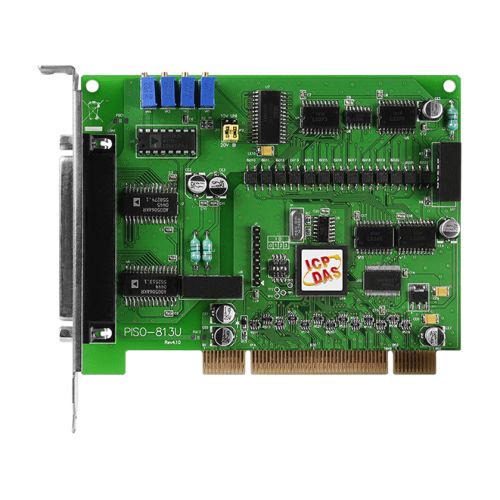

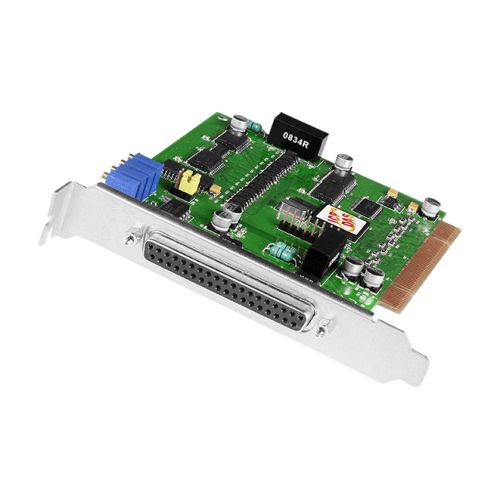

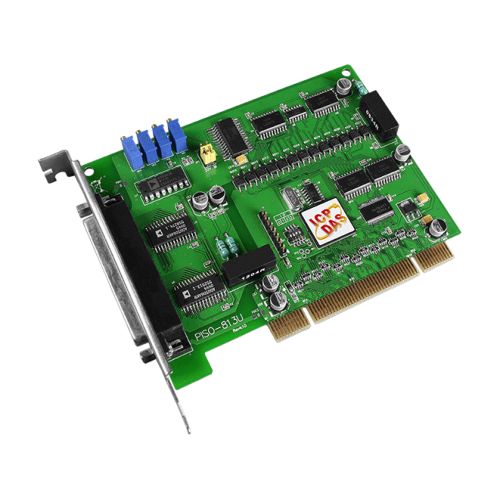

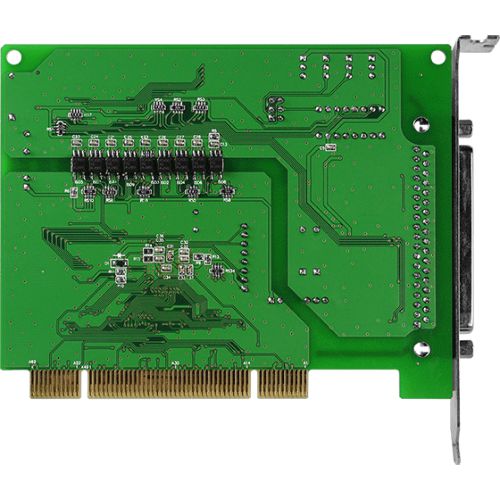

PISO-813U CR: Universal PCI, 32-channel isolated analog input board. (RoHS) Includes one CA-4002 D-Sub connector.

• Support the +3.3/+5 V PCI bus
• 12-bit, 10 kS/s A/D converter
• 32 single-ended analog input channels
• 3750 Vrms bus isolation protection
• Built-in DC/DC converter with 3000 VDC protection
• Analog input range
• Bipolar: +/-10 V,+/-5 V, +/-2.5 V, +/-1.25 V, +/-0.625 V
• Unipolar: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
• Supports Card ID (SMD Switch)
• Programmable gain control: 1, 2, 4, 8, 16
• A/D trigger mode: Software Trigger
• A/D data transfer mode: polling

Analog Input

Isolation Voltage: 3750 Vrms (Bus Type)
Channels: 32 single-ended
A/D Converter: 12-bit, 8 μs Conversion time
Sampling Rate: 10 kS/s. max.
FIFO Size: N/A
Over voltage Protection: Continuous +/-35 Vp-p
Input Impedance: 10 MΩ/6 pF
Trigger Modes: Software
Data Transfer: Polling
Accuracy: 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift: +/- 25 ppm/°C of FSR

General

Bus Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus: 8-bit
Card ID: Yes (4-bit)
I/O Connector: Female DB37 x 1
Dimensions (L x W x D): 128 mm x 92 mm x 22 mm
Power Consumption: 850 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing

Analog Input Range
