PISO-730U-5V CR
Universal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Sink, NPN) Includes one CA-4002 D-Sub connector
The PEX-730 and PISO-730U/730U-5V card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The PISO-730U card is designed as a drop-in replacement for the PISO-730, while the PEX-730 card is designed as easy replacement for the PISO-730. Users can replace the PISO-730 by the PEX-730 and PISO-730U directly without software/driver modification.
PEX-730 and PISO-730U/730U-5V cards provide 32 isolated digital I/O channels (16 x DI and 16 x DO) and 32 TTL-level digital I/O channels (16 x DI and 16 x DO). Both the isolated DI and DO channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, these DIO channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. Each digital output offers a Darlington (NPN) transistor and integrated suppression diode for the inductive load. The open collector outputs (DO channels) are typically used for alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc.
PEX-730 and PISO-730U/730U-5V cards also add a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more cards in one computer.
These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

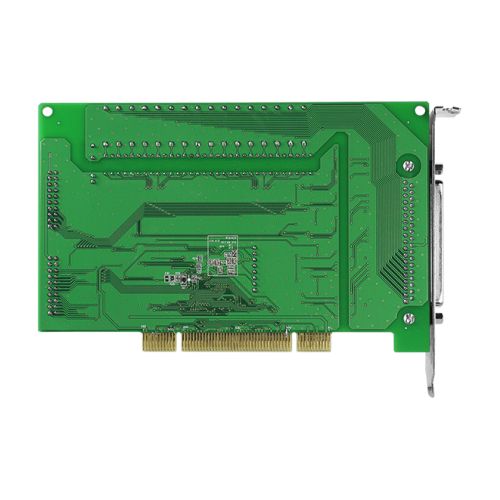

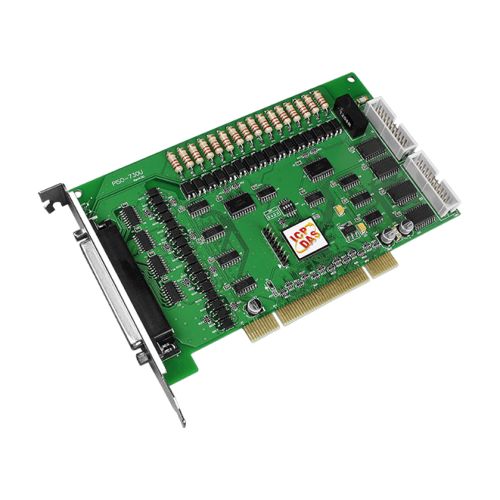

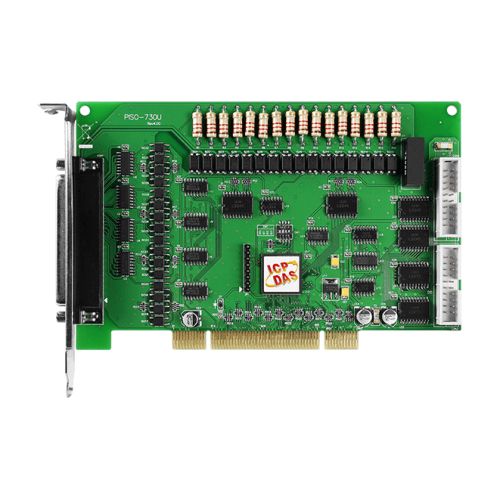

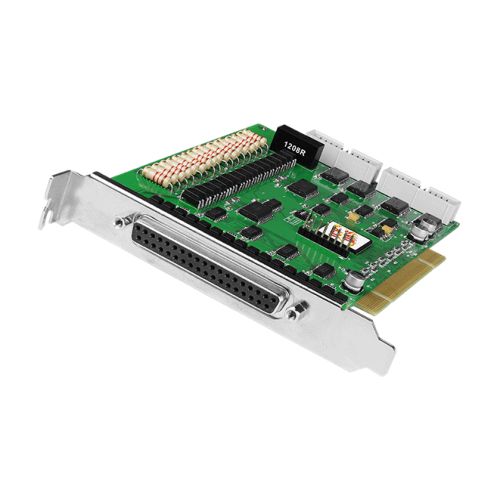

PISO-730U-5V CR: Universal PCI Bus, 32-channel isolated digital I/O (Input Logic High: 5~12 V) & 32-channel TTL digital I/O board. (current sinking) (RoHS) Includes one CA-4002 D-Sub connector.
- Support the +3.3 V/+ 5 V PCI bus for PISO-730U/730U-5V
- Support PCI Express x1 for PEX-730
- 16-channel Optically-isolated Digital Input
- 16-channel Optically-isolated Digital Output (Sink, NPN)
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- 3750 Vrms photo-isolation protection
- Built-in DC/DC converter with 3000 VDC isolated
- Two interrupt sources
- Output status readback function
- Card ID function
- SMD, short card, power saving
- Supports Plug & Play to obtain I/O resources
- No more manually setting of I/O address and IRQ
Isolated Digital Input
Isolation Voltage: 3750 Vrms
Channels: 16
Compatibility: Optical
Input Voltage: Logic 0: 0 ~ 1 V ; Logic 1: 5 ~ 12 V ; (Logic 1: Min. 3.5 V; Max. 16 V)
Input Impedance: 1.2 KΩ, 1 W
Response Speed: 4 kHz (Typical)
Isolated Digital Output
Isolation Voltage: 3750 Vrms
Channels: 16
Compatibility: Sink (NPN), Open Collector
Output Capability: 100 mA/+30 V for each channel @ 100% duty
Response Speed: 4 kHz (Typical)
Non-isolated Digital Input
Channels: 16
Compatibility: 5V/TTL
Input Voltage: Logic 0: 0.8 V max. ; Logic 1: 2.0 V min.
Response Speed: 1.2 MHz (Typical)
Non-isolated Digital Output
Channels: 16
Compatibility: 5V/TTL
Output Voltage: Logic 0: 0.4 V max. ; Logic 1: 2.4 V min.
Output Capability: Sink: 2.4 mA @ 0.8 V ; Source: 0.8 mA @ 2.0 V
Response Speed: 1.2 MHz (Typical)
General
Bus Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus: 8-bit
Card ID: Yes(4-bit)
I/O Connector: Female DB37 x 1 ; 20-pin box header x 2
Dimensions (L x W x D): 180 mm x 105 mm x 22 mm
Power Consumption: 600 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
