PISO-730A CR

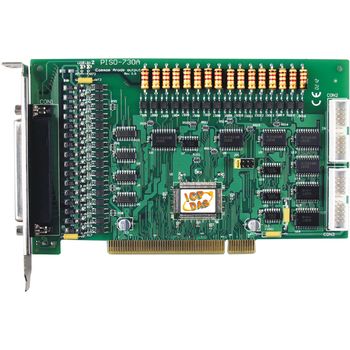

Universal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Source, PNP)
- PCI Bus
- 64 DIO channels (32 Isolated channels, 32 Non-isolated channels)
- One DB-37 connector for isolated digital I/O
- 3750 Vrms photo-isolation protection
- Two 20-pin connectors for non-isolated input and output
- Interrupt source: 2 channels
- Connects directly to DB-24PR, 24POR, DB-24C, DB-16P, DB-16R daughter boards
- SMD, short card, power saving
- Supports Plug & Play to obtain I/O resources
- No more manually setting of I/O address and IRQ
The PISO-730A/730A-5V cards provide 32 isolated digital I/O channels (16 x DI and 16 x DO) and 32 TTL-level digital I/O channels (16 x DI and 16 x DO). Both the isolated DI and DO channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, these DIO channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. Each digital output offers a PNP transistor and integral suppression diode for the inductive load. The open collector outputs (DO channels) are typically used for alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc.
The PISO-730A/730A-5V has a single DB-37 connector and two 20-pin flat-cable connectors. These cards can be installed in a 5 V PCI slot and support true "Plug and Play".
These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000, 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
APPLICATIONS
- Factory automation
- Product test
- Laboratory automation
SOFTWARE
DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.
Digital Input
Isolation Voltage 3750 Vrms
Channels Isolated 16
Non-Isolated 16
Compatibility Isolated Optical
Non-Isolated 5 V/TTL
Output Voltage Isolated: Logic 0: 0 ~ 1 V - Logic 1: 9 ~ 24 V - (Logic 1: Min. 7 V; Max. 30 V)
Non-Isolated Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Input Impedance 1.2 KΩ, 1 W
Response Speed Isolated 4 kHz (Typical)
Non-Isolated 1.2 MHz (Typical)
Digital Output
Isolation Voltage 3750 Vrms
Channels Isolated 16
Non-Isolated 16
Compatibility Isolated Source, Open Collector
Non-Isolated 5 V/TTL
Output Voltage Non-Isolated Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Isolated 100 mA/+30 V for one channel @ 100% duty
Non-Isolated Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed Isolated 4 kHz (Typical)
Non-Isolated 1.2 MHz (Typical)
General
Bus Type 5 V PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID No
I/O Connector Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D) 180 mm x 105 mm x 22 mm
Power Consumption 640 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
