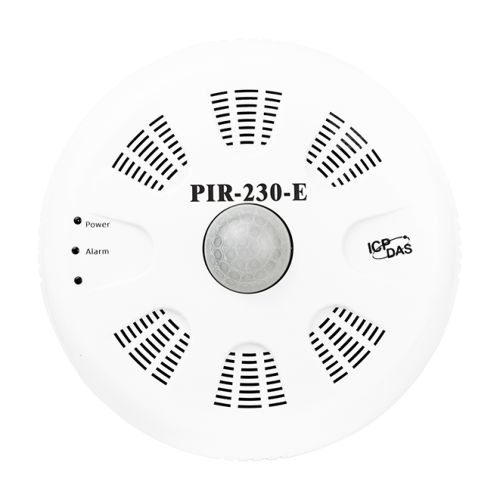

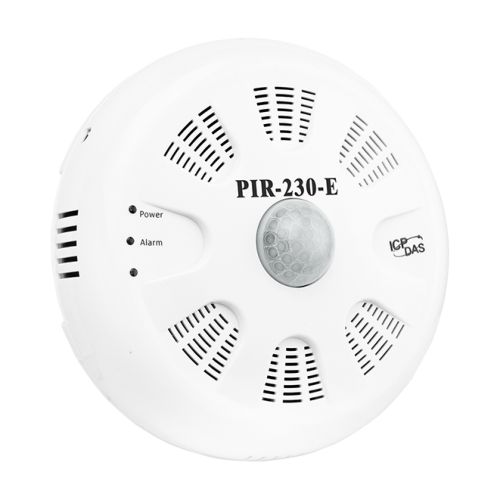

PIR-230-E CR, PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (RS-485, Ethernet PoE)
PIR-230-E CR
PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (RS-485, Ethernet PoE)
Free Shipping
Features
- Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
- Internal Photosensor for Smart Switch Control
- LED Indicator for PIR/Temperature Sensor
- Temperature Sensor for Measuring Room Temperature
- Suitable as either Temperature or Fire Alarm
- Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
- Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
- Fluorescent (T8) Loading Capability
- Wide range of Communication Interfaces and Protocols
- Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
- Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)
- Ceiling or Surface-Mount Design
Introduction
PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.
The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.
Applications
Lighting and exhaust fans in public toilets
Common lighting in staircases
Lighting in parking areas
Garden lights
Lighting for changing rooms in shops
Corridor lighting, and many more situations
Specifications
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal, ±8 kV Air for Random Point
LED Indicators:
Status: Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator
PIR
Detection Height: 4 m Max.
Detection Field of View: 360°; 8 m Diameter Max.
Lux Control Level: Hardware: 2 modes (Dawn and dust) / Software: 5-step
Delay Time: Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
PIR Response Time: 1 second
Temperature Measurement
Fire Alarm: 65°C (Programmable)
Range: -40 ~ +120°C
Resolution: 0.01°C
Accuracy: ±0.5°C (at 0 ~ 60°C)
Humidity Measurement:
Range: 0 ~ 100% RH
Resolution: 0.01% RH
Accuracy: ±5% RH
Digital Input
Channels: 2
Type: Wet Contact
ON Voltage Level: 70 ~ 220 VAC
OFF Voltage Level: 20 VAC Max.
Input Impedance: 68 KΩ, 1 W
Relay Output
Channels: 1
Type: Power Relay, Form C
Contact Rating: NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC
COM Ports
Ports: 1 x RS-485
1 x Ethernet/PoE
Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol: DCON, Modbus RTU, Modbus TCP
Power
Reverse Polarity Protection: Yes
Input Range: 18 ~ 48 VDC, PoE
Consumption: 2 W
Mechanical
Dimensions (mm): Ø150 x 53 (Ø x H)
Installation: Ceiling /surface mounted
Ingress Protection Rating: IP20
Environment
Operating Temperature: 0 ~ +35°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, Non-condensing
