features and benefits

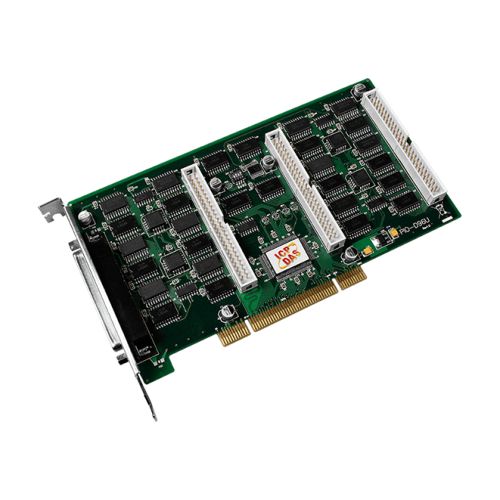

The PIO-D96U supports 3.3 V/5 V PCI bus.
These cards provide 96 TTL Digital I/O lines that consist of twelve 8-bit bi-directional ports.

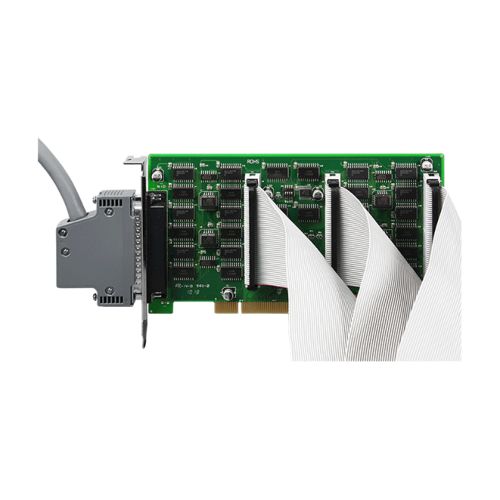

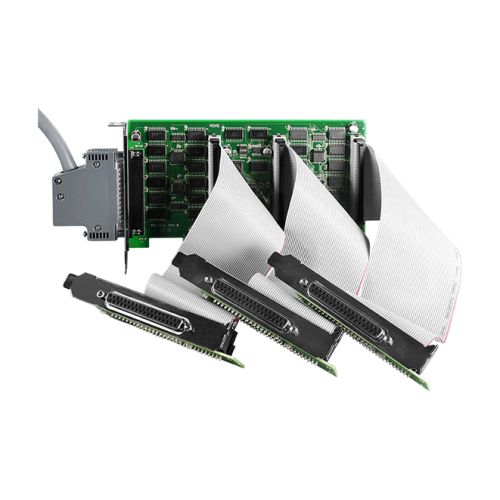

Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs ports on power-up or after a reset. The PIO-D96U provides four connectors for I/O wiring.
The PIO-D96U cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted. The cards support various OS versions, such as Linux, DOS, Windows.
DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
- Universal PCI (3.3 V/5 V) Interface
- 96-channel Digital I/O
- Twelve 8-bit Bi-directional Programmable I/O Ports
- All I/O Lines Buffered on the Board
- 4-channel Interrupt Source
- Buffer Output for Higher Driving Capability
- Supports Card ID (SMD Switch)
- DI/O Response Time approximately 1 μs (1 MHz)
specifications
Hardware| Card ID | Yes (4-bit) |
|---|

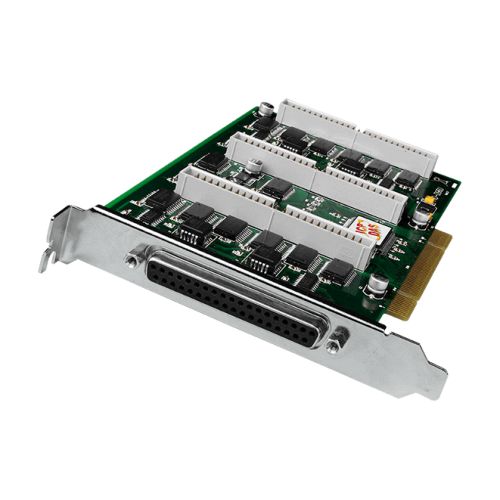

| Connector | Female DB37 x 1 | 50-pin box header x 3 |
|---|
Digital Input| Channels | 96 (Bi-Direction) |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 96 (Bi-Direction) |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.1 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 6 mA @ 0.33 V | Source: 6 mA @ 4.77 V |
|---|
| Response Speed | 1 MHz (Typical) |
|---|
PC Bus| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
|---|
| Data Bus | 8-bit |
|---|
Power| Consumption | 600 mA @ +5 V |
|---|
Mechanical| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
