PIO-D96SU CR ICP DAS Universal PCI Boards



Universal PCI, 96-ch Digital I/O Board



€ 203,88

(VAT excluded)

€ 248,73(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 248,73

Availability: 15 business days

SKU: 94201

Model: PIO-D96SU CR

Need Help?

The PEX-D96S card is a new generation product provided by ICP DAS to meet RoHS compliance requirements.
The PIO-D96U/D96SU supports 3.3 V/5 V PCI bus, while the PEX-D96S supports PCI Express bus. These cards provide 96 TTL Digital I/O lines that consist of twelve 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs ports on power-up or after a reset.
The PIO-D96U provides four connectors for I/O wiring, while the PIO-D96SU and PEX-D96S provides a single high-density connector that reduces the amount of installation space required for the card in the computer.
The PIO-D96U/D96SU and PEX-D96S cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.
These cards support various OS such as Linux, DOS, Windows 98, Windows NT, Windows 2000, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

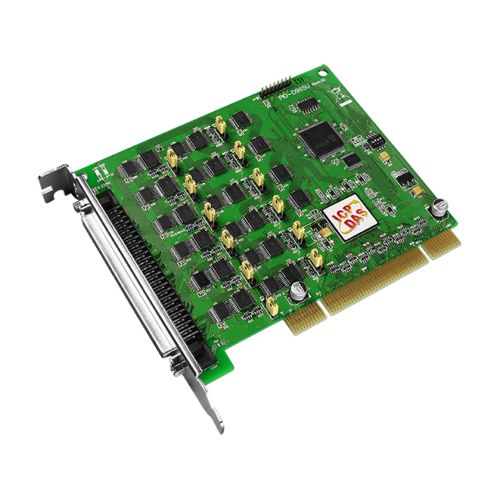

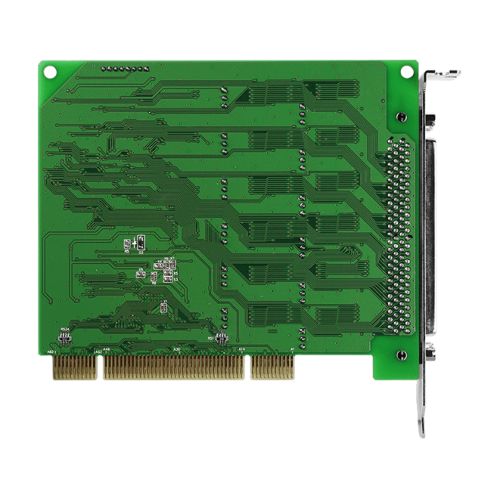

PIO-D96SU CR: Universal PCI, 96-channel DIO board (SCSI II Connector, RoHS)

  • Support the +3.3/+5 V PCI bus for PIO-D96U/D96SU
  • Support PCI Express x1 for PEX-D96S
  • 96 channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • Twelve 8-bit bi-direction I/O ports
  • Interrupt source: 4-channel
  • Pull-high/Pull-low Jumpers for DI Channels
  • Supports Card ID (SMD Switch)
  • Buffer output for higher driving capability
  • Output status readback

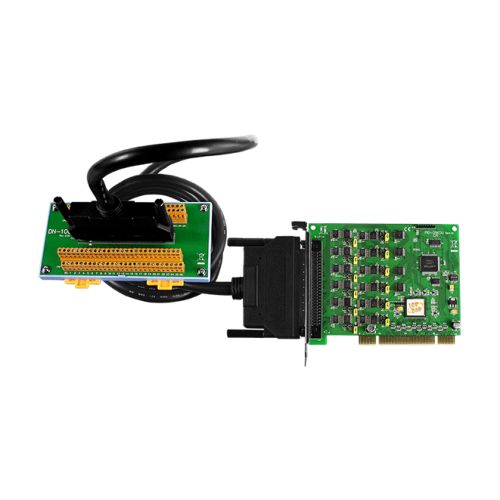

  • Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R,
  • DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards

Programmable Digital I/O

Channels: 96
Digital Inputs
Compatibility: 5 V/CMOS
Input Voltage: Logic 0: 0.8 V max. ; Logic 1: 2.0 V min.
Response Speed: 1 MHz

Digital Outputs

Compatibility: 5 V/CMOS
Output Voltage: Logic 0: 0.1 V max. ; Logic 1: 4.4 V min.
Output Capability: Sink: 6 mA @ 0.33 V ; Source:6 mA @ 4.77 V
Response Speed: 1 MHz


Bus Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus: 8-bit
Card ID: Yes(4-bit)

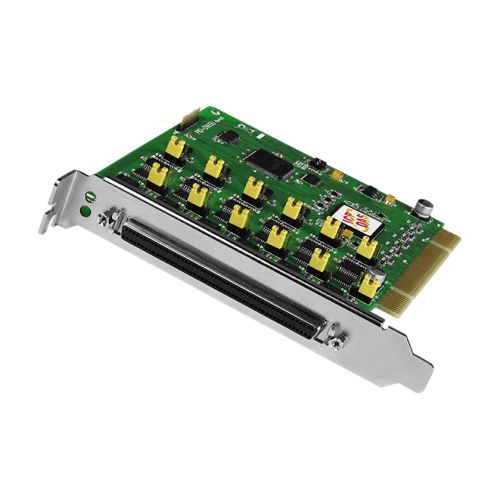

I/O Connector: Female SCSI II 100-pin x 1
Dimensions (L x W x D): 130 mm x 95 mm x 22 mm
Power Consumption: 600 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
