PIO-D144U CR ICP DAS Universal PCI Boards

PIO-D144U CR ICP DAS

PIO-D144U CR

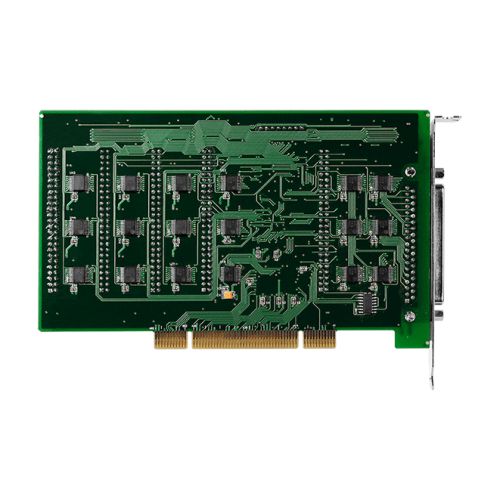

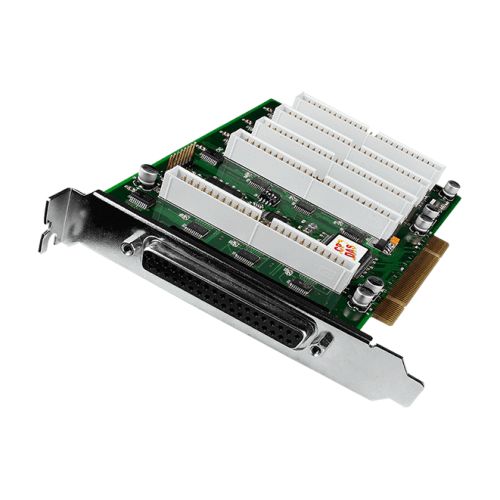

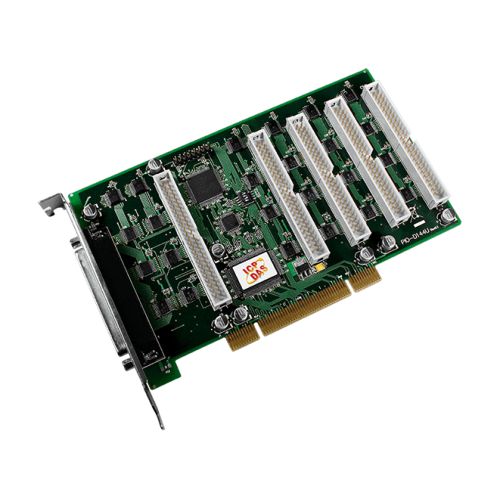

Universal PCI, 144-ch Digital I/O Board

Quantity:

Price

€ 227,97

(VAT excluded)

€ 278,12(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 278,12

Availability: 15 business days

SKU: 4722

Model: PIO-D144U CR

Need Help?


  • Support the +3.3/+5 V PCI bus for PIO- D144U/D144LU
  • Support the +5 V PCI bus for PIO- D144
  • 144 I/O Lines
  • Double side SMT, short card, power saving
  • Connect directly to DB-24P,DB-24R, DB-24PR, DB-24SSR, DB-24POR and other OPTO-22 compatible daughter board
  • Eighteen 8-bit bi-direction I/O ports
  • Emulate 6 Industrial standard 8255 PPI ports (mode 0)
  • Programmable interrupt
  • Card ID function for PIO-D144LU
  • Provide four interrupt sources
  • Output status readback
  • DIO response time is about 0.77 μs (1.3 MHz max.)


The PIO-D144LU card is the new generation product that ICP DAS provides to meet RoHS compliance requirement.
The PIO-D144LU universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 144 TTL digital I/O lines, and these lines are grouped into eighteen 8-bit bi-direction ports. Every three ports on a connector are grouped and named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset.

The PIO-D144LU also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PIO-D144LU cards in one computer.

The new PIO-D144LU card is designed as a drop-in replacement for the PIO-D144U, and users can replace the PIO-D144U by the PIO-D144LU directly without software/driver modification. The PIO-D144LU supports various OS such as Linux、DOS、Windows 98、Windows 2000、Windows NT、Windows XP/2003/Vista/2008/7 32/64-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

SOFTWARE

DOS Lib and TC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux and DasyLab.


Programmable Digital I/O
Channels 144


Digital Input

Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.2 MHz (Typical)


Digital Output

Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Output Capability Sink: 64 mA @ 0.8 V  -  Source: 32 mA @ 2.0 V
Response Speed 1.2 MHz (Typical)


General

Bus Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID Yes(4-bit)
I/O Connector Female DB37 x 1
50-pin box header x 3
Dimensions (L x W x D) 180 mm x 105 mm x 22mm
Power Consumption 600 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
