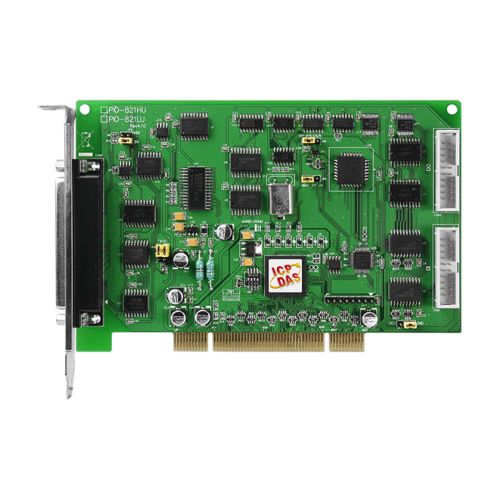

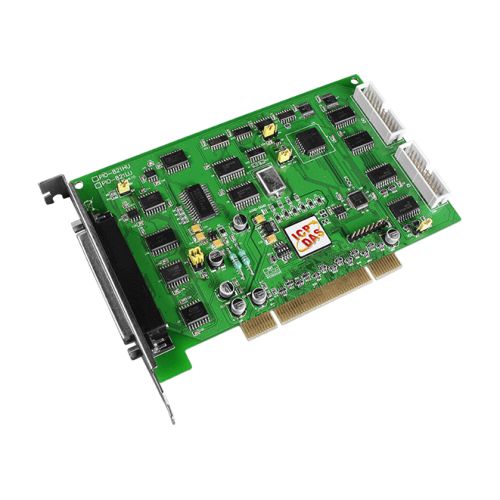

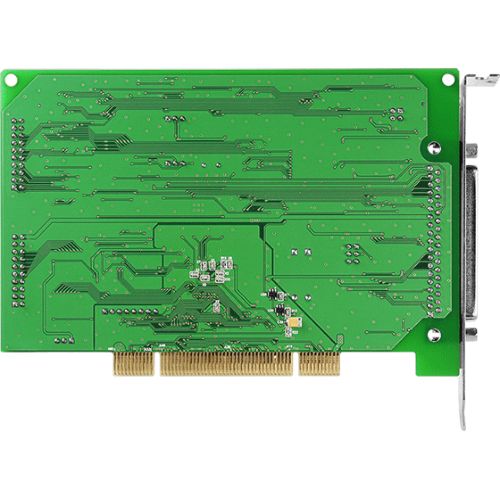

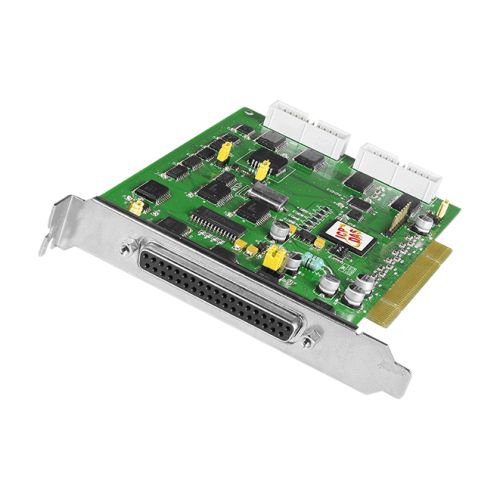

PIO-821HU CR ICP DAS Universal PCI Multifunction

The PIO-821LU/HU card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PIO-821LU/HU card is designed as a drop-in replacement for the PIO-821L/H, and users can replace the PIO-821L/H by the PIO-821LU/HU directly without software/driver modification.
The PIO-821 series cards are a high performance multifunction board for PC/AT compatible computers. The PIO-821LU/HU universal PCI card supports 3.3 V/5 V PCI bus while the PIO-821L/H supports 5 V PCI bus. They feature a 12-bit ADC and the maximum sampling rate of the A/D converter reaches up to about 45K samples/sec.,16 single-ended or 8 differential analog input channels, 12-bit DAC voltage output and 16 TTL-compatible digital input and digital output channels. The PIO-821L/LU provides for low gain (1, 2, 4, 8); and the PIO-821H/HU supports high gain (1, 10, 100, 1000).
The PIO-821LU/HU also adds a Card ID switch and pull-high/pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-821LU/HU cards in one computer. The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
PIO-821HU CR: Universal PCI, 45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS). Includes one CA-4002 D-Sub connector.

• Supports the +5 V PCI Bus for PIO-821L/H
• Supports the +3.3/+5 V PCI bus for PIO-821LU/HU
• The maximum sampling rate of the 12-bit A/D converter is about 45K samples/sec
• 16 single-ended or 8 differential analog input channels
• Software selectable input ranges
• A/D trigger mode: software trigger, pacer trigger, external trigger
• Programmable high gain: 1, 10, 100, 1000 (PIO-821H/HU)
• Programmable low gain: 1,2,4,8 (PIO-821L/LU)
• Input range: ±5V,±0.5V, ±0.05V,±0.005V(PIO-821H/HU)
• Input range: ±5V,±2.5V,±1.25V,±0.625V (PIO-821L/LU)
• 1-channel 12-bit D/A voltage output
• 16-channel 5V/TLL digital input and 16-channel 5V/TTL digital output
• Supports Card ID (SMD Switch) for PIO-821LU/HU
• Digital input port can be set to pull-high or pull-low for PIO-821LU/HU
• Interrupt handling

Analog Input

Channels: 16 single-ended/8 differential
A/D Converter: 12-bit, 8 μs Conversion time
Sampling Rate: 45 kS/s. max.
FIFO Size: N/A
Over voltage Protection: Continuous +/-35 Vp-p
Input Impedance: 10 MΩ/6 pF
Trigger Modes: Software, Internal programmable pacer
Data Transfer: Polling, Interrupt
Accuracy: 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift: +/- a ppm/°C of FSR

Analog Output

Channels: 1
Resolution: 12-bit
Accuracy: 0.01% of FSR ± 1/2 LSB @ 25 °C, ± 10 V
Output Range: Unipolar:0 ~ 5 V, 0 ~ 10 V, 0 ~ Ext Ref
Output Driving: +/- 5 mA
Slew Rate: 0.3 V/μs
Output Impedance: 0.1 Ω max.
Operating Mode: Software

Digital Input

Channels: 16
Compatibility: 5 V/TTL
Input Voltage: Logic 0: 0.8 V max. ; Logic 1: 2.0 V min.
Response Speed: 1.2 MHz (Typical)

Digital Output

Channels: 16
Compatibility: 5 V/TTL
Output Voltage: Logic 0: 0.4 V max. ; Logic 1: 2.4 V min.
Output Capability: Sink: 2.4 mA @ 0.8 V ; Source: 0.8 mA @ 2.0 V
Response Speed: 1.2 MHz (Typical)

Timer/Counter

Channels: 3(Internal pacer x 1/Independent x 2)
Resolution: 16-bit
Compatibility: 5 V/TTL
Input Frequency: 10 MHz max.
Reference Clock: Internal: 2 MHz

General

Bus Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus: 8-bit
Card ID: Yes (4-bit)
I/O Connector: Female DB37 x 1 ; 20-pin box header x 2
Dimensions (L x W x D): 159 mm x 97 mm x 22 mm
Power Consumption: 960 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing

Analog Input

PIO-821H/HU (High-Gain)
