PFN-2060 CR
PROFINET I/O Module (Isolated 6-ch Digital input & 6-ch Relay Output)
The PFN-2060 is specially designed for PROFINET IO device. It has 6-channel isolated digital inputs and 6-channel relay outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

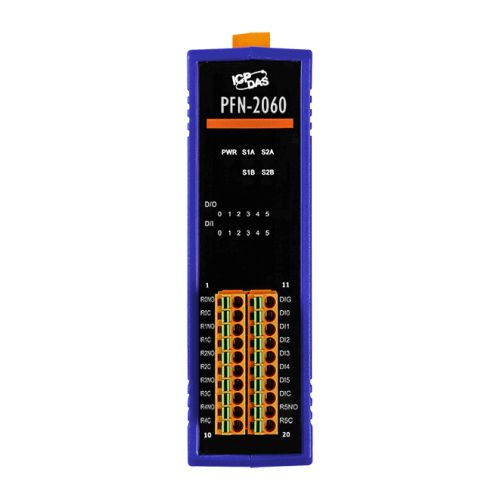

PFN-2060 CR: PROFINET I/O Module (Isolated 6-ch DI & 6-ch Relay Output) (RoHS)
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Support Power-ON Value & Safe Value
- DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Hardware
CPU: 32-bit CPU Core
RAM/Flash/EEPROM: 32 MB / 4 MB / 8 KB
Watchdog: CPU built-in
ESD Protection: 4 kV class B
PROFINET Interface
Protocol: PROFINET IO Device
Conformance Classes: Class B
Services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time: 1 ms (min)
Ethernet Interface
Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

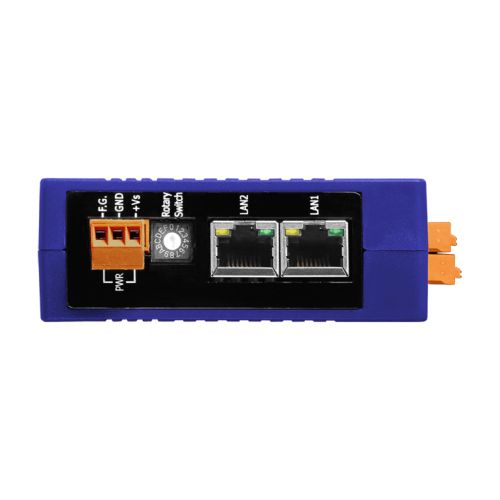

Connector: RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Input
Channels: 6, Dry Contact: Source, Wet Contact: Sink or Source
Dry Contact Level: Off Voltage Level: Open, On Voltage Level: Close to GND
Wet Contact Level: Off Voltage Level: +4 VDC max., On Voltage Level: +10 VDC to +50 VDC
Digital Output
Channels: 6, Power Relay, Form A x 6
Contact Rating: AC: 125 V@0.6A DC: 30V@2A, 110V@0.6A
Operating Time: 3 ms
Release Time: 2 ms
Total Switching Time: 10 ms
Surge Strength: 500 VAC (50/60 Hz)
Insulation resistance: 1000 MW min. at 500 VDC
LED
Round LED: PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply. Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 4.5 W
Mechanism
Installation: DIN-Rail
Dimensions: 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
