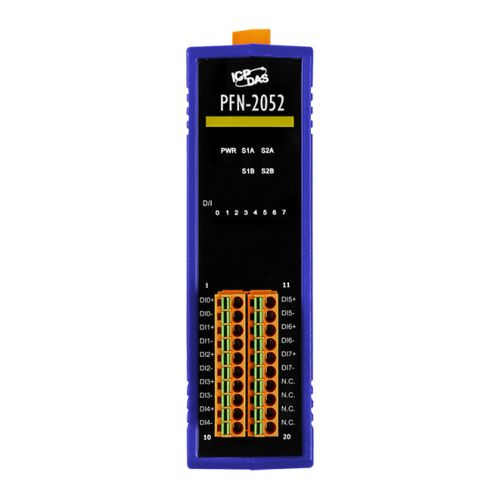

PFN-2052 CR
PROFINET I/O Module (Isolated 8-ch DI)
The PFN-2052 is specially designed for PROFINET IO device. It has 8-channel isolated digital inputs and, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
PFN-2052 CR: PROFINET I/O Module (Isolated 8-ch DI) (RoHS)
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- DI ON/OFF voltage level: +4 ~ +30 VDC / +1VDC max.
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Hardware
CPU: 32-bit CPU Core
RAM/Flash/EEPROM: 32 MB / 4 MB / 8 KB
Watchdog: CPU built-in
ESD Protection: 4 kV class A
PROFINET Interface
Protocol: PROFINET IO Device
Conformance Classes: Class B
Services. RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time: 1 ms (min)
Ethernet Interface
Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

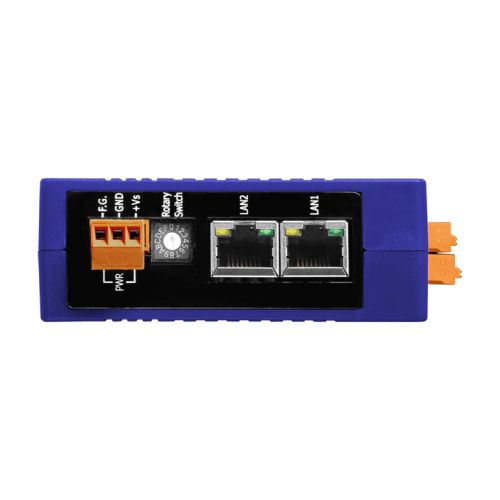

Connector: RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Input
Channels: 8, Wet Contact: Sink or Source
Wet Contact Level: Off Voltage Level: +1 VDC max., On Voltage Level: +4 VDC to +30 VDC
LED
Round LED: PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 3.5 W
Mechanism
Installation: DIN-Rail
Dimensions: 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
