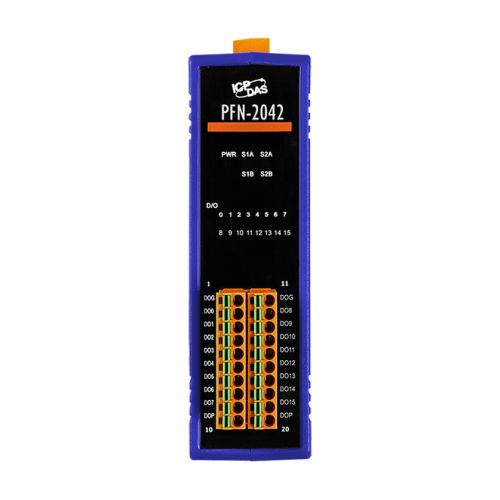

PFN-2042 CR
PROFINET I/O Module (Isolated 16-ch DO)
The PFN-2042 is specially designed for PROFINET IO device. It has 16-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
PFN-2042 CR: PROFINET I/O Module (Isolated 16-ch DO) (RoHS)
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Do load voltage: +3.5 ~ +50 VDC
- Do load current: 700 mA/Channel (max.)
- Provide short-circuit protection on DO channels
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Hardware
CPU: 32-bit CPU Core
RAM/Flash/EEPROM: 32 MB / 4 MB / 8 KB
Watchdog: CPU built-in
ESD Protection: 4 kV class B
PROFINET Interface
Protocol: PROFINET IO Device
Conformance Classes: Class B
Services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time: 1 ms (min)
Ethernet Interface
Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

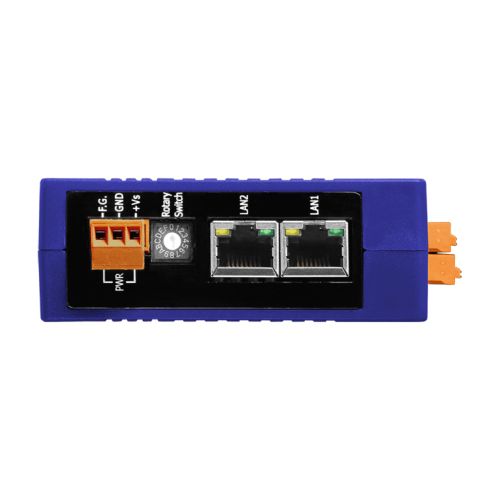

Connector: RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Output
Channels: 16, Sink, NMOS
Load voltage: +3.5 ~ +50 VDC
Load current: 700 mA/Channel (max.)
LED
Round LED: PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 4 W
Mechanism
Installation: DIN-Rail
Dimensions: 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
