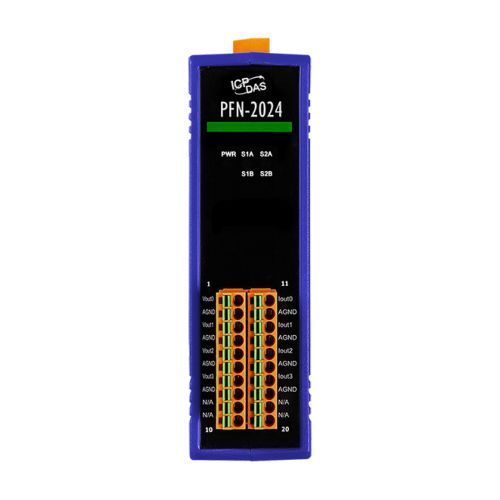

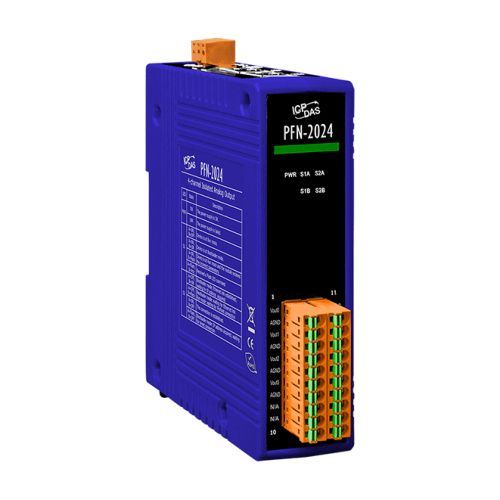

PFN-2024 CR
PROFINET I/O Module (4-channel Isolated Analog Output Module)
The PFN-2024 is specially designed for PROFINET IO device. It has 4-channel isolated analog output with voltage and current output types. It provides ±4kV ESD protection contacting for all terminals. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
PFN-2024 CR: PROFINET I/O Module (4-channel Isolated Analog Output Module) (RoHS)
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- 16-bits resolution DAC
- Output Range: 0~20mA, 4~20mA, 0~10V, +/-10V, 0~5V, +/-5V
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Hardware
CPU: 32-bit CPU Core
RAM/Flash/EEPROM: 32 MB / 4 MB / 8 KB
Watchdog: CPU built-in
ESD Protection: 4 kV class A
PROFINET Interface
Protocol: PROFINET IO Device
Conformance Classes: Class B
Services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time: 1 ms (min)
Ethernet Interface
Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

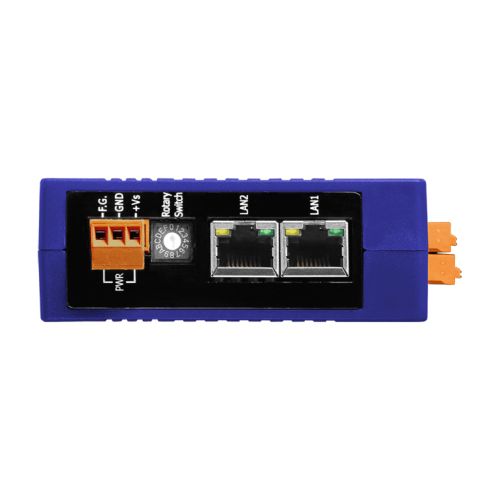

Connector: RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Analog Output
Channels: 4
Output Range:
- 0~20mA, 4~20mA (current sourcing)
- 0~10V, +/-10V, 0~5V, +/-5V
Resolution: 16 bit
Accuracy: +/- 0.1% of FSR
Isolation: 1500 VDC
LED
Round LED: PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 7 W
Mechanism
Installation: DIN-Rail
Dimensions: 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
