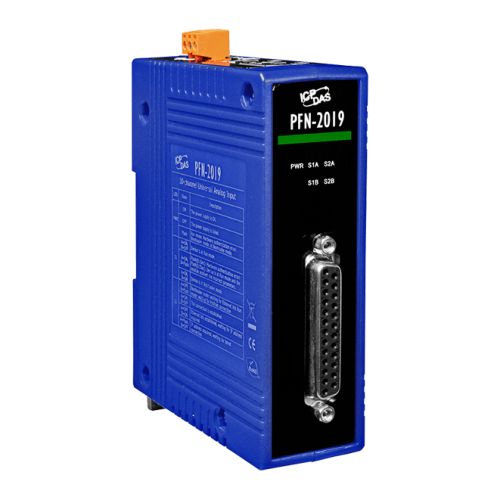

PFN-2019/S CR ICP DAS ProfiNet

The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
PFN-2019/S CR: PROFINET I/O Module (10-channel Universal Analog Input Module) (RoHS). Include PFN-2019 module and a DB-1820 daughter board

• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• CYCLIC Time: 1 ms (min)
• Generic GSDML File Provided (Version 2.25)
• 16-bits resolution & 10HZ sample rate
• Supports thermocouple devices with J, K, T, E, R, S, B, N, C
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +70°C)


Hardware

CPU: 32-bit CPU Core
RAM/Flash/EEPROM: 32 MB / 4 MB / 8 KB
Watchdog: CPU built-in
ESD Protection: 4 kV class A

PROFINET Interface

Protocol: PROFINET IO Device
Conformance Classes: Class B
Services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time: ms (min)

Ethernet Interface

Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

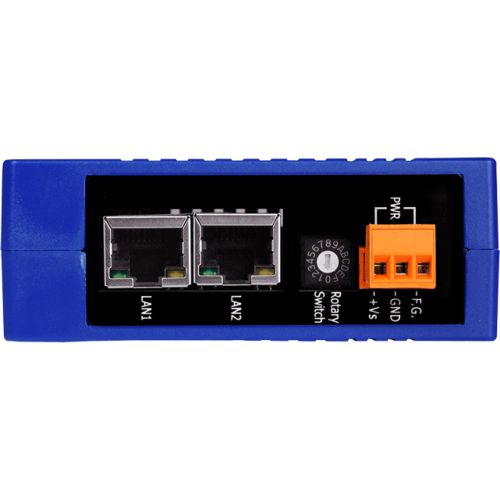

Connector: RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging

Analog Input

Channels: 10 channel differential
Input Range: +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 0~20mA, 4~20mA (Jumper Selectable), Thermocouple Type: J, K, T, E, R, S, B, N, C
Resolution: 16 bit
Sample Rate: 10 Hz (Total)
Accuracy: +/- 0.1% of FSR
Open Wire Detection: Yes

LED

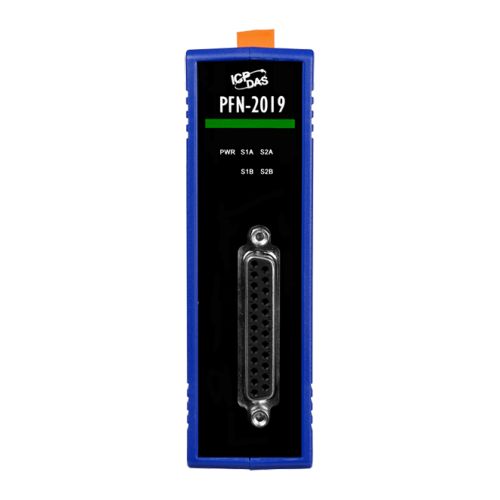

Round LED. PWR LED, S1A LED, S1B LED, S2A LED, S2B LED

Power

Power supply. Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 5 W

Mechanism

Installation: DIN-Rail
Dimensions: 33 mm x 93 mm x 126 mm (W x L x H)

Environment

Operating Temp.: -25 ~ 70 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
