features and benefits

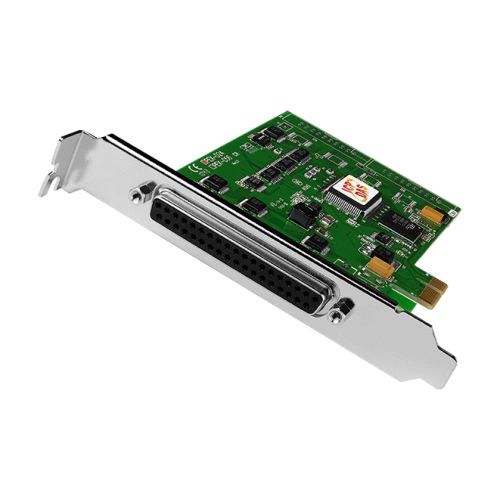

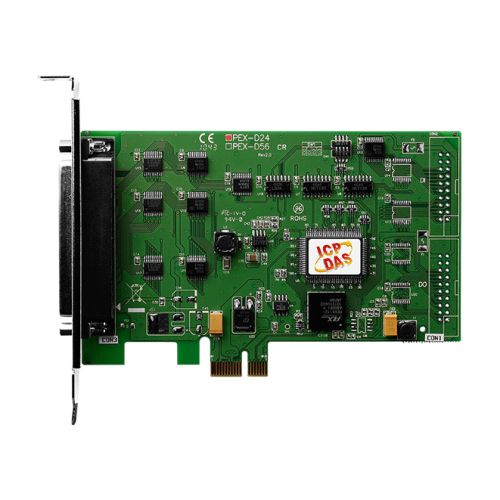

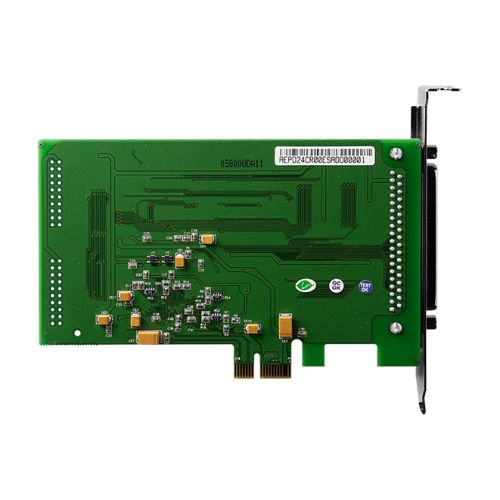

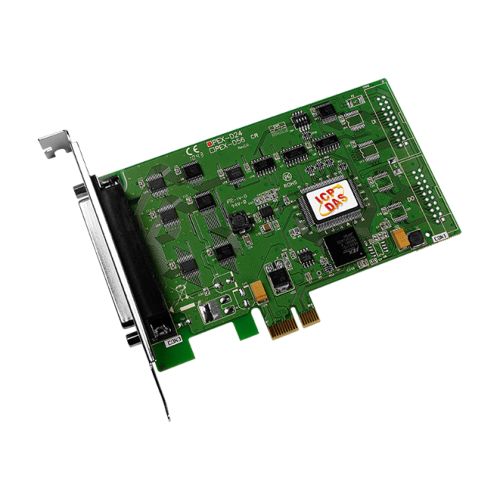

The PEX-D24 series utilizes the PCI Express bus and is designed as an easy replacement for the PIO-D24/PIO-D24U series without requiring any modification to either the software or the driver. The PEX-D24 provides 24 buffered TTL Digital Input/Output lines. The PEX-D24 also includes an onboard Card ID that enables the board to be easily recognized via software if two or more cards are installed in the same computer.
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- Emulates two Industrial-standard 8255 PPI Ports (Mode 0)
- DI/O Response Time approximately 2 μs (500 kHz Max.)
- 24 Buffered TTL Digital Input/Output Lines
- Three 8-bit Bi-directional I/O Ports
- DO Provides Higher Driving Capability
- Four Interrupt Sources
specifications
Hardware| Card ID | Yes (4-bit) |
|---|
| Connector | Female DB37 x 1 |
|---|
Digital Input| Channels | 24 (Bi-Direction) |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 500 kHz (Typical) |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 24 (Bi-Direction) |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.4 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 64 mA @ 0.8 V | Source: 32 mA @ 2.0 V |
|---|
| Response Speed | 500 kHz (Typical) |
|---|
PC Bus| Type | PCI Express x 1 |
|---|
| Data Bus | 8-bit |
|---|
Power| Consumption | 650 mA @ +3.3 V | 0 mA @ +12 V |
|---|
Mechanical| Dimensions (mm) | 86 x 134 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
