PEX-D144LS CR

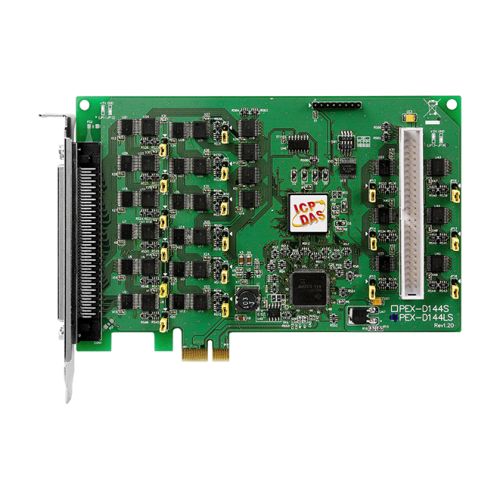

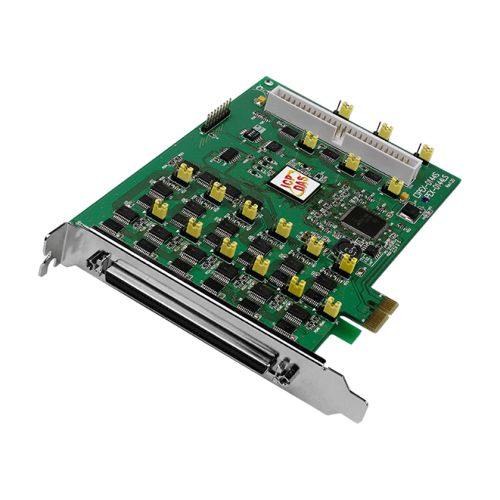

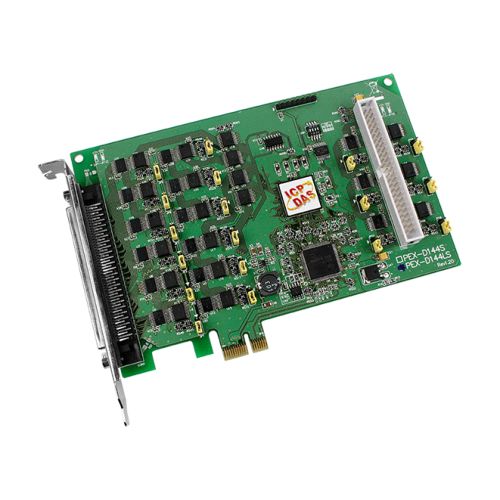

PCI Express, 144-ch Digital I/O Board
The PEX-D144LS card is the new generation product that ICP DAS provides to meet RoHS compliance requirement.
The PIO-D144U/D144LU universal PCI card supports 3.3 V/5 V PCI bus, while the PEX-D144LS supports PCI Express bus. These cards provide 144 TTL digital I/O lines that are grouped into eighteen 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs Ports on power-up or after a reset.
The PIO-D144U/D144LU provides six connectors for I/O wiring, while the PEX-D144LS provides a high-density connector that reduces the amount of installation space required for the card in the computer.
The PIO-D144U/D144LU and PEX-D144LS cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The PIO-D144LU and PEX-D144LS also adds pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.
These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.
PEX-D144LS CR: PCI Express, 144-channel DIO board (SCSI II Connector, RoHS)
- Support the +3.3 V/+5 V PCI bus for PIO-D144U/D144LU
- Supports PCI Express x 1 for PEX-D144LS
- 144 channels of digital I/O
- Bi-direction programmable I/O ports under software control
- Eighteen 8-bit bi-direction I/O ports
- Interrupt source: 4-channel
- Pull-high/Pull-low Jumpers for DI Channels for PIO-D144LU/PEX-D144LS
- Supports Card ID (SMD Switch)
- Output status readback
- Connect directly to DB-24P,DB-24R, DB-24PR, DB-24SSR, DB-24POR and other OPTO-22 compatible daughter board
SOFTWARE
DOS Lib and TC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.
Programmable Digital I/O
Channels: 144
Digital Input
Compatibility: 5 V/CMOS
Input Voltage: Logic 0: 0.8 V max. Logic 1: 2.0 V min.
Response Speed 500 kHz
Digital Output
Compability: 5 V/CMOS
Output Voltage: Logic 0: 0.1 V max. Logic 1: 4.4 V min.
Output Capability: Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed: 500 kHz
General
Bus Type: PCI Express x 1
Data Bus: 8-bit
Card ID: Yes (4-bit)
I/O Connector: Female SCSI II 100-pin x 1 - 50-pin box header x 1
Dimensions: (L x W x D) 162 mm x 100 mm x 22 mm
Power Consumption: 250 mA @ +5 V
Operating Temperature: 0 ~ 60 °C
Storage Temperature: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
