features and benefits

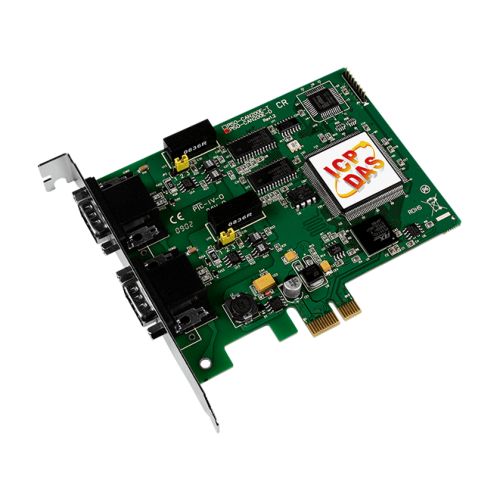

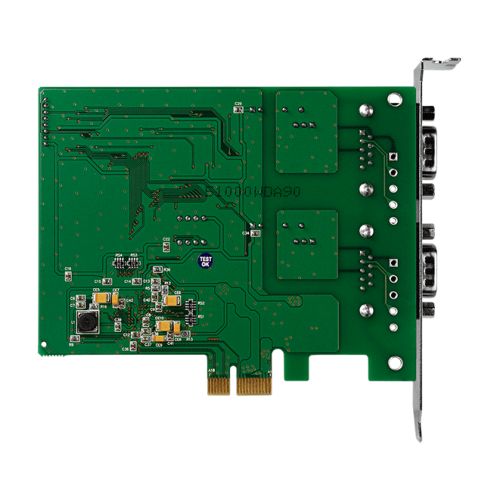

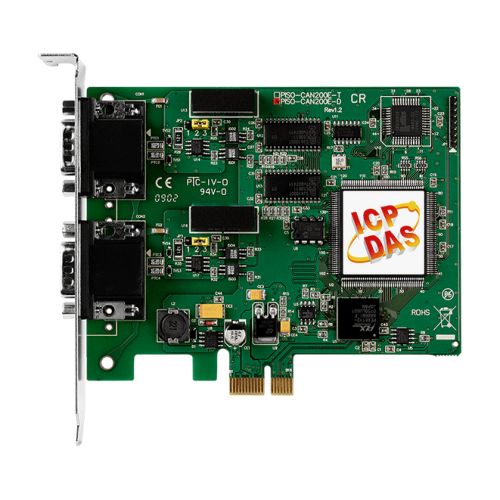

PEX-CAN200i can represents an economic solution of an active CAN board with express PCI bus.

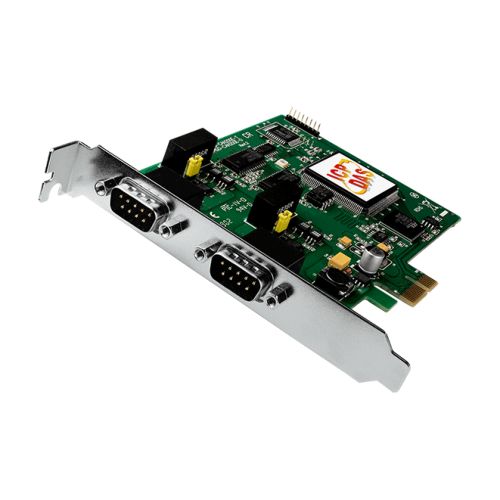

It has 2 independent CAN bus communication ports with 5-pin screw terminal connector or 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.
Besides, PEX-CAN200i uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.
- PCI Express Interface
- Compatible with CAN 2.0 parts A and B
- Fully compatible with ISO 11898-2 standard
- Support CAN bard from 10K to 1M bps
- 2500 Vrms photo couple isolation on the CAN bus
- 33 MHz, 32 bit, X1 PCI Express bus
- (It can be plugged into the PCI-Express x1, x4, x8, or x16 slot)
- Build-in jumper to select 120 Ω terminal resister
- 3KV galvanic isolation
- 2 independent CAN channels
- Direct memory mapping to the CAN controller
- Provide VB, VC++, Delphi, BC++ demos
specifications
Software| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
|---|
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
|---|
PC Bus| Type | 33 MHz, 32 bit, X1 PCI Express bus |
|---|
CAN| Controller | NXP SJA1000T with 16 MHz clock |
|---|
| Ports | 2 |
|---|
| Baud Rate | 10 k ~ 1 M bps |
|---|
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
|---|
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
|---|
Power| Consumption | 100 mA @ 12 V, 100 mA @ 3.3 V |
|---|
Mechanical| Dimensions (mm) | 120 x 85 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60 °C |
|---|
| Storage Temperature | -20 ~ +70 °C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
