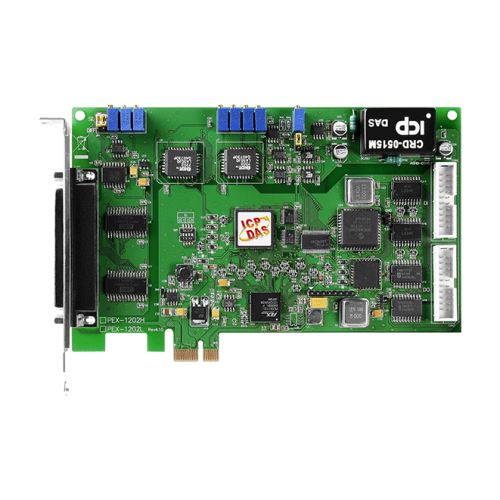

PEX-1202L CR ICP DAS PCI Express

The PEX-1202L/H and PCI-1202LU/HU cards are the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-1202L/H. Users can replace the PCI-1202L/H by the PEX-1202L/H and PCI-1202LU/HU directly without software/driver modification.

The PCI/PEX-1202 series is a family of high performance data acquisition board. They feature a continuous A/D acquisition function of up to 110 kHz for low gain (44 kHz for high gain) under DOS and offer two 12-bit D/A output channels, 16 digital input channels and 16 digital output channels. The PCI-1202 and PEX-1202 series family has the same hardware architecture as PCI-1802, and provides 32-channel single-ended or 16-channel differential analog inputs. Like the PCI-1802 family, the PCI/PEX-1202 series features " MagicScan" function and Continuous Capture function.

The PCI-1202LU/HU Universal PCI card supports both 5 V and 3.3 V, while the PEX-1202L/H supports PCI Express bus. These cards add new designs of Card ID switch with which users can recognize the board by the ID via software when using two or more PCI/PEX-1202 series cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The PCI-1202xU/8K cards are equipped with 8 K samples hardware FIFO that reduces data overflow issues under multi-tasking environment like Windows and Linux.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

PEX-1202L CR: 32-ch, 12-bit, 110 kS/s Low Gain Multi-function DAQ Board (1 K word FIFO) (RoHS). Includes one CA-4002 D-Sub connector.

• Supports the +5 V PCI bus for PCI-1202L/H
• Supports the +3.3/+5 V PCI bus for PCI-1202LU/HU
• Supports PCI Express x 1 for PEX-1202L/H
• 12-bit 110 kHz A/D converter
• 32 single-ended / 16 differential inputs, 1 K word FIFO buffer
• The total sampling rate is 110 K samples/s for low gain model and 44 K samples/s for high gain model
• Three external triggers: post-trigger, pre-trigger, middle-trigger
• 16 digital input and 16 digital output channles
• PCI-1202HU/PEX-1202H provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
• Digital input port can be set to pull-high or pull-low for PCI-1202LU/HU and PEX-1202L/H only
• Internal / external trigger
• Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)

SOFTWARE

DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Analog Input

Isolation Voltage: 32 single-ended/16 differential
A/D Converter: 12-bit, 8.5 μs conversion time
Sampling Rate: 44 kS/s. max.
FIFO Size: 1024 samples
Over Voltage Protection: Continuous +/- 35 Vp-p
Input Impedance: 10 MΩ/6 pF
Trigger Modes: Software, Internal programmable pacer, External (5 V/TTL compatible)
Data Transfer: Polling
Accuracy: 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift: +/- 4 ppm/°C of FSR

Analog Output

Channel: 2
Resolution: 12-bit
Accuracy: 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V
Output Range: ±5 V, ±10 V
Over Driving: +/- 5 mA
Slew Rate: 8.33 V/μs
Output Impedance: 0.1 Ω max.
Operating Mode: Software

Digital Input

Channels: 16
Compatibility: 5V/TTL
Input Voltage (Max.): Logic 0: 0.8 V Max. - Logic 1: 2.0 V Min.
Response Speed: 500 kHz

Digital Output

Channels: 16
Compatibility: 5 V/CMOS
Input Voltage (Max.): Logic 0: 0.1 V Max. - Logic 1: 4.4 V Min.
Output Capability: Sink: 6mA @ 0.33 V - Source: 6mA @ 4.77V
Response Speed: 500 kHz

Timer/Counter

Channels: 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Resolution: 16-bit
Compatibility: 5 V/TTL
Input Frequency: 10 MHz max.
Reference Clock: Internal: 8 MHz

General

Bus Type: PCI Express x 1
Data Bus:  16-bit
Card ID:   Yes (4-bit)
I/O Connector:  Female DB37 x 1 - Male 20-pin ribbon x 2
Dimensions: (L x W x D) 162 mm x 100 mm x 22 mm
Power Consumption: 300 mA @ +5 V
Operating Temperature:  0 ~ 60 °C
Storage Temperature:  -20 ~ 70 °C
Humidity:  5 ~ 85% RH, non-condensing

Model - PEX 1202H (Low-Gain)

Gain: 0.5
Bipolar: +/- 10
Unipolar:  -
Sampling Rate Max:  110

Model - PEX 1202H (High-Gain)

Gain: 0.5
Bipolar:  +/- 10
Unipolar: -
Sampling Rate Max: 44
