features and benefits

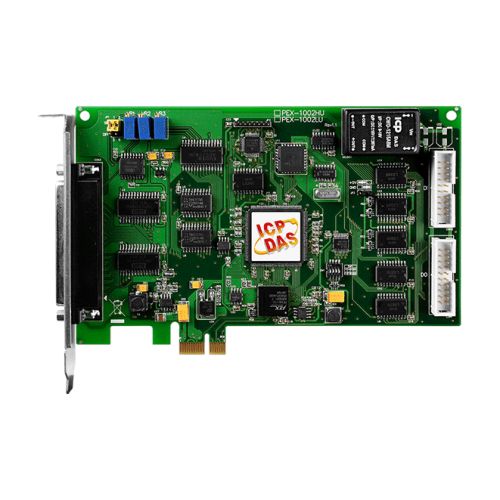

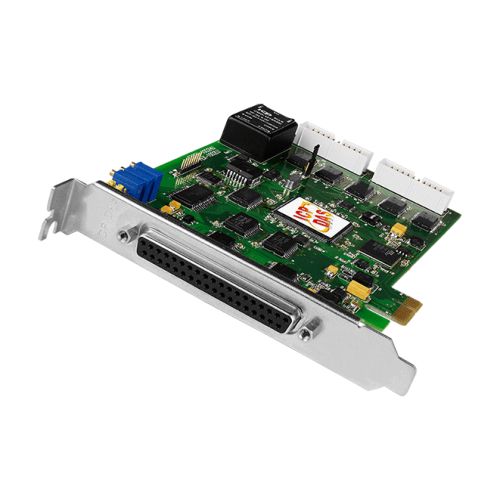

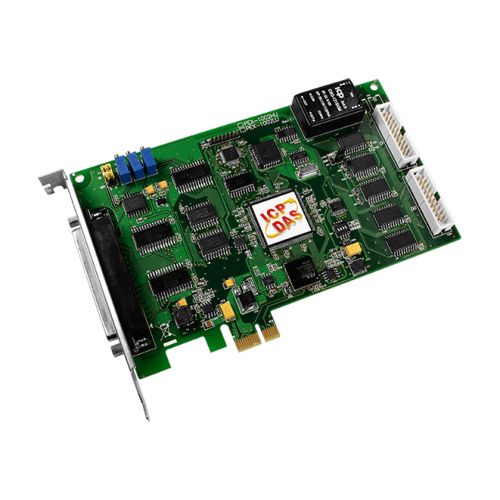

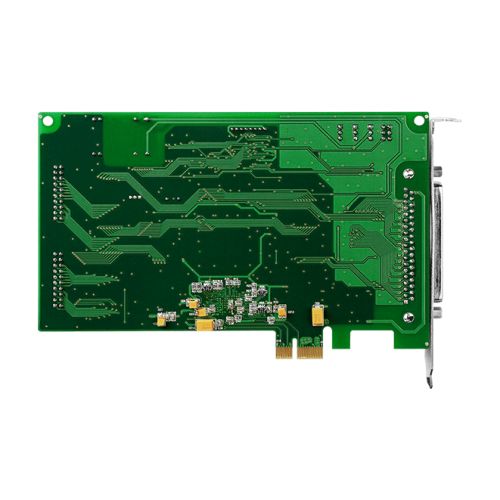

The PEX-1002L supports PCI Express bus.
These cards are a family of A/D board and features low-gain 110 kS/s AI.
It provides 12-bit 32 single-ended or 16 differential AIs, 16 DI and 16 DO channels. The PEX-1002L also adds a Card ID switch on-board.
Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L cards in one computer.
The PEX-1002L provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating. The cards support various OS versions, such as Linux, DOS, Windows.
DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- 16-channel 5 V/TTL Digital Input
- 16-channel 5 V/TTL Digital Output
- Pull-high/Pull-low Jumpers for DI Channels
- 12-bit, 32 Single-ended/16 Differential Analog Input channels
- Internal/External Trigger
- 110 or 44 kS/s AD Sampling Rate
specifications
Hardware| Card ID | Yes (4-bit) |
|---|
| Connector | Female DB37 x 1 | 20-pin box header x 2 |
|---|
Analog Input| Channels | 32 single-ended/16 differential |
|---|
| Range | Gain: 1, 2, 4, 8 | Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
|---|
| Resolution | 12-bit |
|---|
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
|---|
| Sampling Rate | 110 kS/s. Max. |
|---|
| Input Impedance | 10 MΩ/6 Pf |
|---|
| Overvoltage Protection | Continuous ±35 Vp-p |
|---|
| Zero Drift | ±4 ppm/°C of FSR |
|---|
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
|---|
| Data Transfer | Polling, Interrupt |
|---|
Digital Input| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 500 KHz |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.4 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 2.4 mA | Source: 0.8 mA |
|---|
| Response Speed | 500 KHz (Typical) |
|---|
Timer/Counter/Frequency| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
|---|
| Type | 5 V/TTL |
|---|
| Resolution | 16-bit |
|---|
| Input Frequency | 10 MHz Max. |
|---|
| Reference Clock | Internal: 4 MHz |
|---|
PC Bus| Type | PCI Express x 1 |
|---|
| Data Bus | 16-bit |
|---|
Power| Consumption | 900 mA @ +3.3 V | 350 mA @ +12 V |
|---|
Mechanical| Dimensions (mm) | 110 x 167 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
