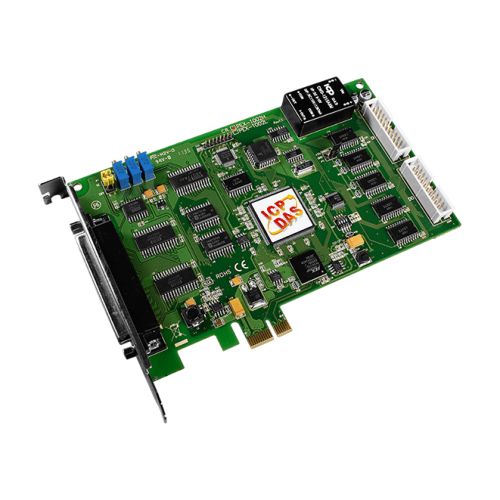

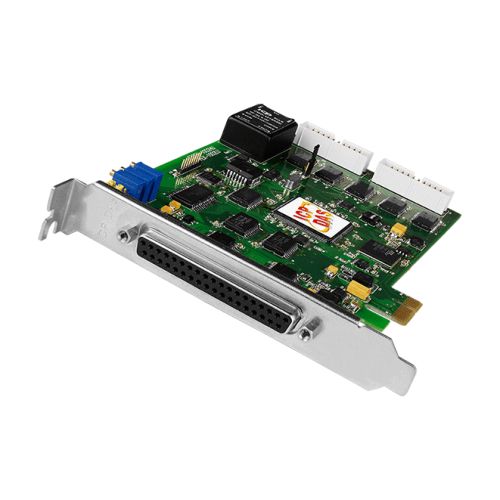

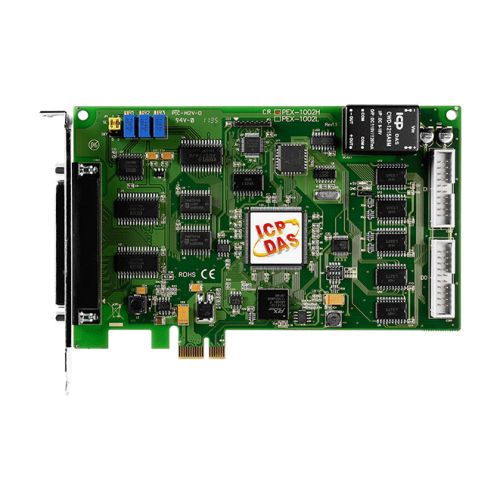

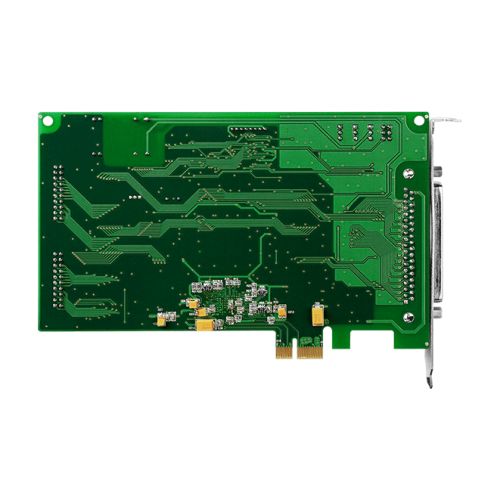

PEX-1002H CR ICP DAS PCI Express



PEX-1002H CR

PCI Express, 44 kS/s, 32-ch, 12-bit Multi-function Board Includes one CA-4002 D-Sub connector



€ 337,05

(VAT excluded)

€ 411,20(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 411,20

Availability: 15 business days

SKU: 92982

Model: PEX-1002H CR

Need Help?

The PCI-1002LU/HU and PEX-1002LH cards are the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-1002L/H. Users can replace the PCI-1002L/H by the PCI-1002LU/HU and PEX-1002L/H directly without software/driver modification.

The PCI-1002LU/HU supports 3.3 V/5 V PCI bus, while the PEX-1002L/H supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s or high-gain 44 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.



The PEX-1002L/H also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L/H cards in one computer. The PCI-1002LU/HU and PEX-1002L/H provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.



These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.


PEX-1002H CR: PCI Express, 32-ch, 12-bit, 44 kS/s High Gain Multi-function DAQ Board (RoHS). Includes one CA-4002 D-Sub connector.

  • Supports the +5 V PCI bus for PCI-1202L/H
  • Supports the +3.3/+5 V PCI bus for PCI-1202LU/HU
  • Supports PCI Express x 1 for PEX-1202L/H
  • 12-bit 110 kHz A/D converter
  • 32 single-ended / 16 differential inputs, 1 K word FIFO buffer
  • The total sampling rate is 110 K samples/s for low gain model and 44 K samples/s for high gain model
  • Three external triggers: post-trigger, pre-trigger, middle-trigger
  • 16 digital input and 16 digital output channles
  • PCI-1202HU/PEX-1202H provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
  • Digital input port can be set to pull-high or pull-low for PCI-1202LU/HU and PEX-1202L/H only
  • Internal / external trigger
  • Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)


DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Analog Input

Isolation Voltage: 32 single-ended/16 differential
A/D Converter: 12-bit, 8.5 μs conversion time
Sampling Rate: 44 kS/s. max.
FIFO Size: 1024 samples
Over Voltage Protection: Continuous +/- 35 Vp-p
Input Impedance: 10 MΩ/6 pF
Trigger Modes: Software, Internal programmable pacer, External (5 V/TTL compatible)
Data Transfer: Polling
Accuracy: 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift: +/- 4 ppm/°C of FSR

Digital Input

Channels: 16
Compatibility: 5V/TTL
Input Voltage (Max.): Logic 0: 0.8 V Max. - Logic 1: 2.0 V Min.
Response Speed: 500 kHz

Digital Output

Channels: 16
Compatibility: 5 V/CMOS
Input Voltage (Max.): Logic 0: 0.1 V Max. - Logic 1: 2.4 V Min.
Output Capability: Sink: 2mA - Source: 0.8mA
Response Speed: 500 kHz


Channels: 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Resolution: 16-bit
Compatibility: 5 V/TTL
Input Frequency: 10 MHz max.
Reference Clock: Internal: 4 MHz


Bus Type: PCI Express x 1
Data Bus:  16-bit
Card ID:   Yes (4-bit)
I/O Connector:  Female DB37 x 1 - 20-pin box header x 2
Dimensions: (L x W x D) 167 mm x 110 mm x 22 mm
Power Consumption: 800 mA @ +5 V
Operating Temperature:  0 ~ 60 °C
Storage Temperature:  -20 ~ 70 °C
Humidity:  5 ~ 85% RH, non-condensing

Model - PEX 1002L (High-Gain)

Gain: 1000
Bipolar: +/- 0.01
Sampling Rate Max: 0.8 KS/s.
