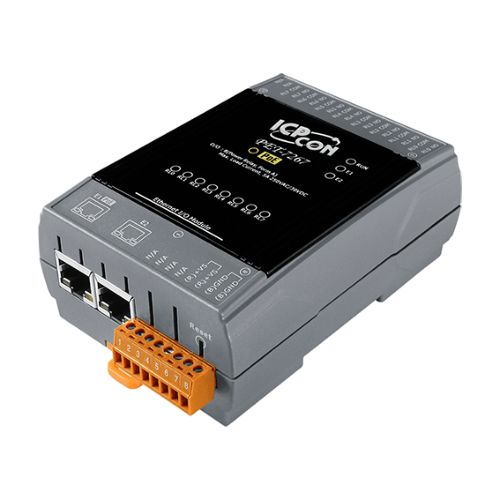

PET-7267 CR ICP DAS Relay Module


PET-7267 CR

PoE Ethernet I/O Module with 2-port Ethernet Switch and 8-ch Power Relay



€ 261,81

(VAT excluded)

€ 319,41(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 319,41

Availability: 15 business days

SKU: 106385

Model: PET-7267 CR

Need Help?

The ET-7067/PET-7067/ET-7267/PET-7267 provides 8 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of relay are programmable. It can safely be used in applications where hazardous voltages are present.
PET-7267 CR: PoE Ethernet I/O Module with 2-port Ethernet Switch, with 8-ch Relay (RoHS)

  • Buil-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
  • Power Relay: 8 Channels


Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes


Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE: Yes
Protocol: Modbus/TCP, Modbus/UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)

LED Indicators

for System Running: Yes
for Ethernet Link/Act: Yes
for DI/DO status: Yes
for PoE Power: Yes

2-Way Isolation

Ethernet: --
I/O: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power Requirements

Reverse Polarity Protection: Yes
Powered from Terminal Block: 12 ~ 48 VDC
Powered from PoE: Yes, IEEE 802.3af, Class1
Consumption: 4.1 W (Max.)


Dimensions (W x L x H): 76 mm x 120 mm x 38 mm
Installation: DIN-Rail or Wall mounting


Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, Non-condensing

I/O Specification

Power Relay

Channels: 8
Type: Power Relay, Form A (SPST N.O.)
Contact Rating: 5 A @ 250 VAC/24 VDC (Resistive Load)
Min. Contact Load: 10 mA @ 5 V
Operate Time: 10 ms (max.)
Release Time: 5 ms (max.)
Mechanical Endurance: 2 × 107 ops.
Electrical Endurance: 105 ops.
Power-on Value: Yes, Programmable
Safe Value: Yes, Programmable
