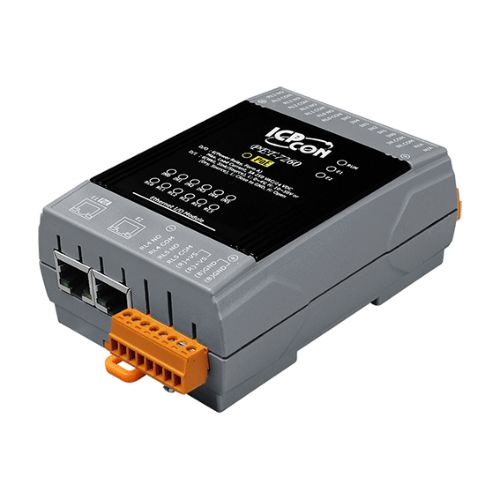

PET-7260 CR ICP DAS Relay Module

The ET-7060/PET-7060/ET-7260/PET-7260 provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. Each input channel can be used as a 32-bit counter. The power-on value and safe value of relay are programmable.
Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads.
PET-7260 CR: PoE Ethernet I/O Module with 2-port Ethernet Switch, with 6-ch Relay Output and 6-ch DI (RoHS)

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• Wide Operating Temp. Range: -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O
• DI/Counter: 6 Channels
• Power Relay: 6 Channels

Software

Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE: Yes
Protocol: Modbus/TCP, Modbus/UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)

LED Indicators

for System Running: Yes
for Ethernet Link/Act: Yes
for DI/DO status: Yes
for PoE Power: Yes

2-Way Isolation

Ethernet: --
I/O: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power Requirements

Reverse Polarity Protection: Yes
Powered from Terminal Block: 12 ~ 48 VDC
Powered from PoE:: Yes, IEEE 802.3af, Class1
Consumption: 3.8 W

Mechanical

Dimensions (W x L x H): 76 mm x 120 mm x 38 mm
Installation: DIN-Rail or Wall mounting

Environmental

Operating Temperature. -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, Non-condensing

I/O Specification

Digital Input/Counter

Channels: 6
Contact: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
On Voltage Level: +10 VDC ~ +50 VDC
Off Voltage Level: +4 VDC Max.
Input Impedance: 10 kΩ
Counters:

• Max. Count: 4,294,967,285 (32 bits)
• Max. Input Frequency: 100 Hz
• Min. Pulse Width: 5 ms

Overvoltage Protection: +70 VDC

Power Relay

Channels: 6
Type: Power Relay, Form A (SPST N.O.)
Contact Rating: 5 A @ 250 VAC/24 VDC (Resistive Load)
Min. Contact Load: 10 mA @ 5 V
Operate Time: 10 ms (max.)
Release Time: 5 ms (max.)
Mechanical Endurance: 2 × 107 ops.
Electrical Endurance: 105 ops.
Power-on Value: Yes, Programmable
Safe Value: Yes, Programmable
