PET-7217-10 CR ICP DAS Analog IO Modules

The ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. The sampling rate of ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 has two modes; fast mode and normal mode for your consideration. ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.

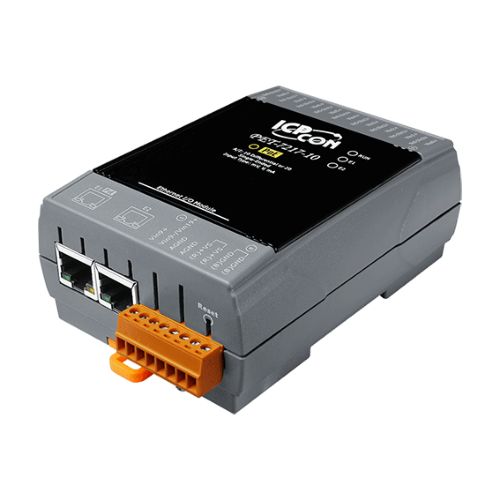

PET-7217-10 CR: PoE Ethernet I/O Module with 2-port Ethernet Switch, with 10/20-ch AI (RoHS)

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O
• AI: 10/20 Channels with 240 Vrms Overvoltage Protection

Software

Built-in Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE: Yes
Protocol: Modbus TCP, Modbus UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 seconds), Communication (Programmable)

LED Indicators

for System Running: Yes
for Ethernet Link/Act: Yes
for DI/DO status: --
PoE Power: Yes

2 Way Isolation

Ethernet: --
I/O: 2500 Vrms

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±2 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power

Reverse Polarity PRotection: Yes
Powered from Terminal Block: 12 ~ 48 VDC
Powered fro PoE: Yes, IEEE 802.3af, Class1
Consumption: 3.8 W (Max.)

Mechanical

Dimensions (W x L x H): 76 mm x 120 mm x 38 mm
Installation: DIN-Rail or Wall mounting

Environmental

Operating Tem.: -25 ~ +75 °C
Storage Temp.: -30~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing

I/O Specifications

Analog Input

Channels: 10 differential or 20 single-ended (Note1), software selectable
Type: +/-150 mV, +/-500 mV, +/-1V, +/-5V, +/-10V ; +/-20 mA ,0 ~ 20 mA, 4 ~ 20 mA ; (Jumper Selectable)
Individual Channel Configuration: Yes
Resolution: 16-bit
Sampling Rate: Normal Mode: 10 Samples/Second (Total) ; Fast Mode: 50 Samples/Second (Total)
Accuracy: Normal Mode: +/-0.1% ; Fast Mode: +/-0.5% or better
Zero Drift:  +/-20 μV/°C
Span Drift: +/-25 ppm/°C
Overvoltage Protection: Differential: 240 Vrms ; Single-ended: 150 Vrms
Common Voltage Protection:  ±200 VDC
Overcurrent Protection: Yes, 50 mA at 110 VDC
Virtual Channel to Channel Isolation: Yes, 400 VDC
Open Wire Detection for 4 ~ 20 mA: Yes
Input Impedance: Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended) ; Current: 125 Ω
Common Mode Rejection: 86 dB Min.
Normal Mode Rejection: 100 dB
