PET-7215 CR ICP DAS RTD Input

The ET-7015/PET-7015/ET-7215/PET-7215 is specifically designed for long-distance RTD measurement. It features automatic compensation for three-wire RTD regardless of the length of wires and provides open wire detection for RTD measurement. The ET-7015/PET-7015/ET-7215/PET-7215 offers 7 channels, each of which could be connected with different kinds of RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000). Also, The ET-7015/PET-7015/ET-7215/PET-7215 is fully RoHS-compliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

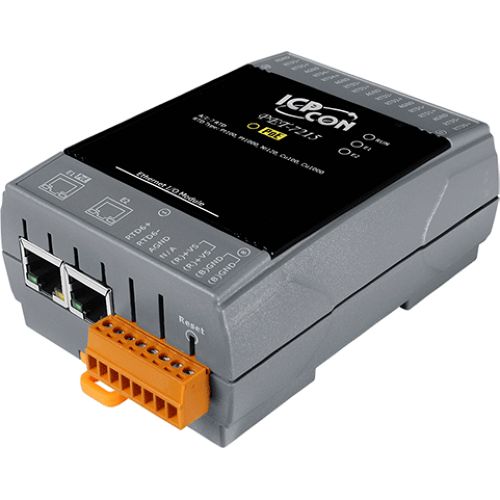

PET-7215 CR: PoE Ethernet I/O Module with 2-port Ethernet Switch, with 7-ch RTD Inputs (RoHS)

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• Wide Operating Temperature Range:  -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O
• RTD Input: 7 Channels

Software

Built-in Web Server: Yes
Web HMI: Yes
I/O Pari Cnonnection: Yes

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE: Yes
Protocol: Modbus TCP, Modbus UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 seconds), Communication (Programmable)

LED Indicators

for System Running: Yes
for Ethernet Link/Act: Yes
for DI/DO status: --
for PoE Power: Yes

2 Way Isolation

Ethernet: --
I/O: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±2 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power

Reverse Polarity Protection: Yes
Powered form Terminal Block: 12 ~ 48 VDC
Powered form PoE: Yes, IEEE 802.3af, Class1
Consumption: 3.2 W (Max)

Mechanical

Dimension (W x L x H): 76 mm x 120 mm x 38 mm
Installation: DIN-Rail or Wall mounting

Environmental

Operating Temp.: -25 ~ +75 °C
Storage Temp.: -30~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing

I/O Specification

RTD Input

Channels: 7 (Differential)
Sensor Type: Pt100, Pt1000, Ni120, Cu100, Cu1000
Wire Connectors: 2/3 wire
Individual Channel Configuration: Yes
Resolution: 16-bit
Sampling Rate: 12 Samples/Second (Total)
Accuracy: +/-0.05%
Zero Drift: +/-0.5 μV/°C
Span Drift: +/-20 μV/°C
Overvoltage Protection: 110 VDC/VAC
Common Mode Rejection: 150 dB
Normal Mode Rejection: 100 dB
Input Impedance: >1M Ω
Overvoltage Protection: 120 VDC
Resistance Measurement: 3.2 KΩ Max.
