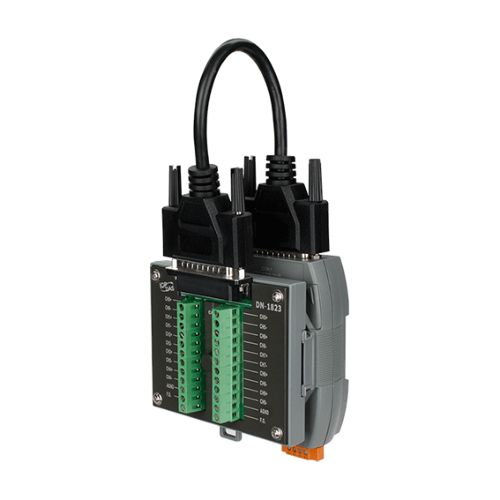

PET-7018Z/S3 CR, PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch Digital output Includes DN-1823 Daughter Board, CA-2525015D 15 cm Cable and 4PAPP-006-G
PET-7018Z/S3 CR
PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch Digital output Includes DN-1823 Daughter Board, CA-2525015D 15 cm Cable and 4PAPP-006-G
Free Shipping
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- Thermocouple Input: 10 Channels
- DO: 6 Channels
Introduction
The "Z" version is another milestone in the development of the thermocouple series and is a testament to the excellence of ICP DAS products. The PET-7018Z is specifically designed for extremely accurate thermocouple measurement and features automatic coldjunction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and overload protection.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
Software
Built-in Web Server: Yes
CPU Module
Watchdog Timer: Module, Communication (Programmable)
Isolation
2-way Isolation: I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status: Run, Ethernet, PoE
Analog Input
Channels: 10 (Differential)
Type: Voltage
Current
Thermocouple
Temperature Output Consistency: Yes
Stable Temperature Output in the Field: Yes
Range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
±20 mA, 0 to 20 mA, 4 to 20 mA (Requires Optional External 125 Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710)
Resolution: 16-bit
Accuracy: ±0.1% of FSR or better
Sampling Rate: 10 samples/second (Total)
Input Impedance: >300 kΩ
Common Mode Rejection: 150 dB (min.)
Normal Mode Rejection: 100 dB
Overvoltage Protection: 240 Vrms
Individual Channel Configuration: Yes
Open Wire Detection: Yes
Zero Drift: ±0.5 μV/°C
Span Drift: ±25 ppm/°C
Isolation: ±400 VDC, Virtual Channel to Channel Isolation
Digital Output
Channels: 6
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +5 to +50 VDC
Load Current: 700 mA/channel
Overvoltage Protection: +60 VDC
Overload Protection: 1.4 A
Short-circuit Protection: Yes
Power on Value: Programmable
Safe Value: Programmable
Ethernet
Ports: 1 x RJ-45, 10/100 Base-TX
PoE: Yes
Security: ID, Password and IP Filter
Protocol: Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection: Yes
Consumption: 3.0 W
Powered from PoE: IEEE 802.3af, Class1
Powered from Terminal Block: +12 to +48 VDC
Mechanical
Dimensions (mm): 72 x 123 x 35 (W x L x H)
Installation: DIN-Rail mounting
Environment
Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Humidity: 10 to 90% RH, Non-condensing
