features and benefits

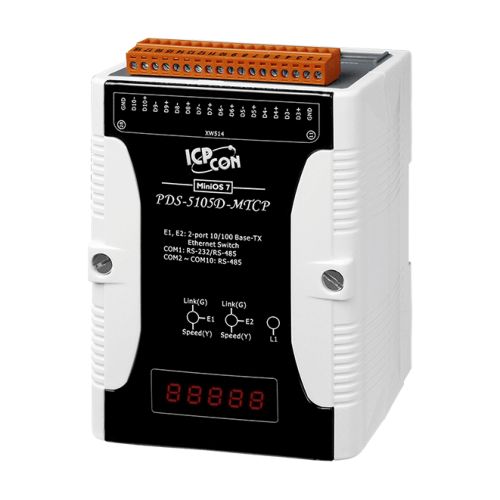

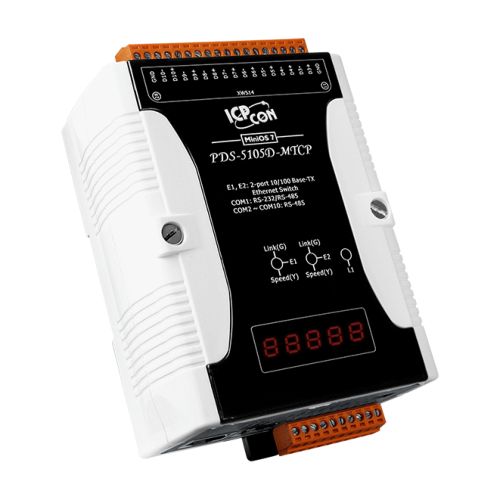

The PDS-5105D-MTCP is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/485 devices to an Ethernet network.
The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-5105D-MTCP into standard COM ports on a PC.
By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-5105D-MTCP is able to meet the demands of every network-enabled application.
The PDS-5105D-MTCP includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day.
The built-in, high-performance MiniOS7 boots the PDS-5105D-MTCP up in just one second and gives you fastest responses.
The PDS-5105D-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.
The PDS-5105D-MTCP is equipped with 1 RS-232/485 port and 9 RS-485 ports.

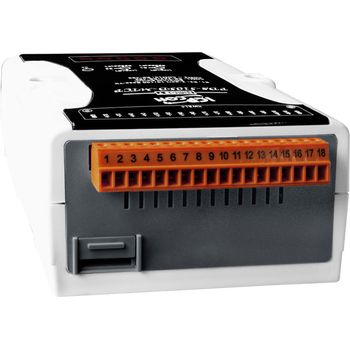

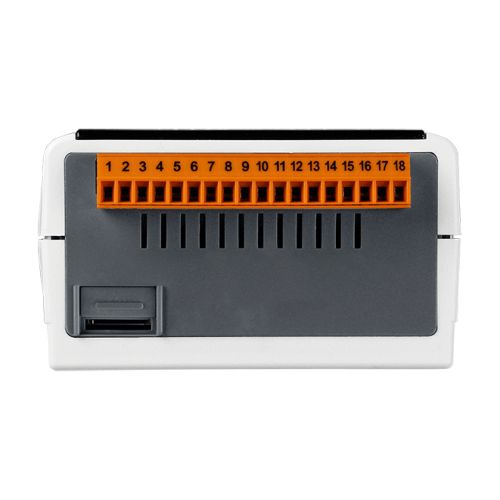

The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.

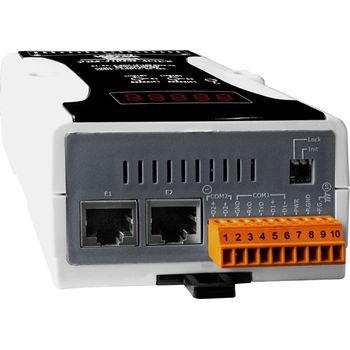

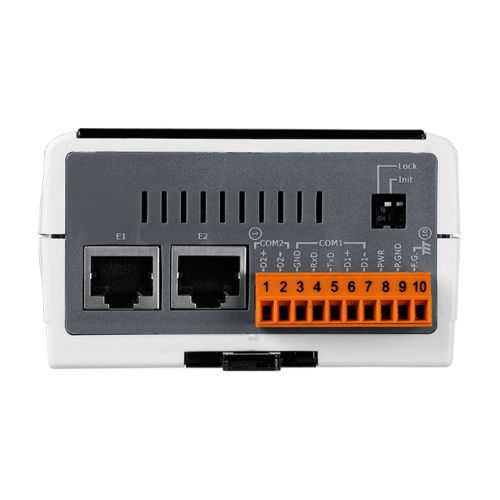

The PDS-5105D-MTCP is equipped with a 2-port 10/100Base-Tx Ethernet switch that simplifies network wiring by cascading Ethernet devices.
Furthermore, the module features a LAN Bypass function.
In cases where the module is offline due to of software, hardware or power failure, the LAN Bypass function will be automatically activated, and the essential communications on the network can continue operating without interruption.
- Integrates any RS-232/485 serial device in an Ethernet Network
- Virtual COM extends the PC COM ports
- Virtual COM supports 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Powerful programmable device server
- Watchdog timer suitable for use in harsh environments
- Built-in high performance MiniOS7 from ICP DAS
- 2-Port 10/100 Base-TX Ethernet Switch with LAN Bypass
- Low power consumption
specifications
CPU ModuleCPU | 80186 or compatible (16-bit and 80 MHz) |
---|
EEPROM | 16 KB |
---|
Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles. |
---|
SRAM | 512 KB |
---|
LED IndicatorsStatus | 1 x Power | 2 x Ethernet | 5 x digit 7 Segment |
---|
EthernetPorts | 2-Port 10/100 Base-TX Ethernet Switch with LAN Bypass, RJ-45 x 2 | (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
---|
COM PortsPorts | 1 x 3-wire RS-232/RS-485 | 9 x RS-485 |
---|
Baud Rate | 115200 bps Max. @ 10 Ports, half-duplex, 80% loading |
---|
Bias Resistor | Yes, 1 KΩ |
---|
Parity | None, Odd, Even, Mark, Space |
---|
Data Bit | 7, 8: for COM1 and COM2 | 5, 6, 7, 8: for COM3 ~ COM10 |
---|
Stop Bit | 1, 2 |
---|
Node Address | 254 (max.) |
---|
PowerReverse Polarity Protection | Yes |
---|
Consumption | 0.18 A @ 24 VDC |
---|
Powered from Terminal Block | +12 ~ 48 VDC |
---|
MechanicalCasing | Fire Retardant Materials (UL94-V0 Level) |
---|
Dimensions (mm) | 91 mm x 52 mm x 131 mm (W x L x H) |
---|
Installation | DIN-Rail |
---|
EnvironmentOperating Temperature | -25 ~ +75 °C |
---|
Storage Temperature | -30 ~ +80 °C |
---|
Humidity | 10 ~ 90% RH, non-condensing |
---|
