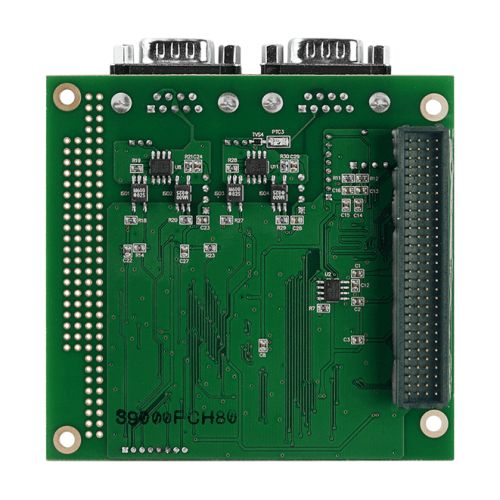

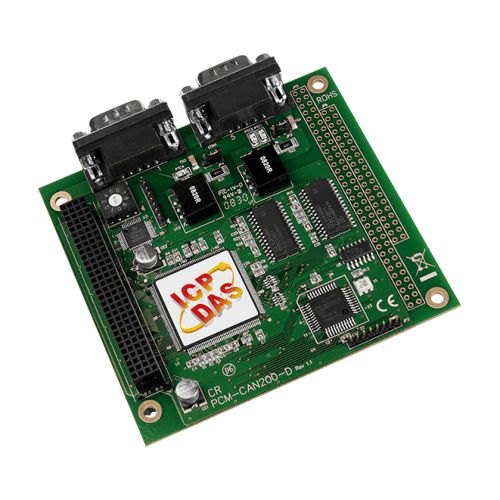

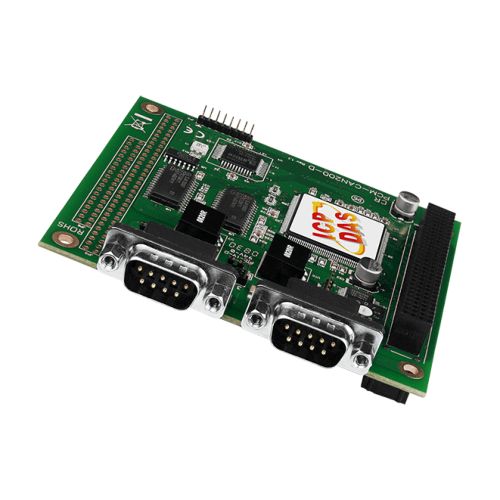

PCM-CAN200-D CR
2-port CAN PCI-104 Module
- PCI104/PC104+ compliant
- 9-pin male D-sub connector
- Compatible with CAN 2.0 parts A and B
- Fully compatible with ISO 11898-2 standard
- Support CAN bard from 10 kbps ~ 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Built-in jumper to select 120 Ω terminal resister
- 1 kV galvanic isolation
- 2 independent CAN channels
- Direct memory mapping to the CAN controller
- Provide VB6.0, VC++6.0, Delphi, BCB6.0 demos
- Driver support Windows 98/ME/NT/2K/XP/WinCE
The PCM-CAN200 can represent a CAN solution on a high quality PCI104/PC104+ hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PCM-CAN200 uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in both 3.3 V and 5 V PCI slot and supported truly “Plug & play”.
Bus Interface
Type PCI-104
CAN Interface
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Channel number: 2
Connector: 9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others)
Baud Rate (bps): 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M (allow user-defined baud rate)
Terminator Resistor: Jumper for 120 Ω terminator resistor
Power
Power Consumption: 250 mA @ 5 V
Mechanism
Dimensions: 91mm x 22mm x 96mm (W x L x H)
Environment
Operating Temp: 0 ~ 60 °C
Storage Temp: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
