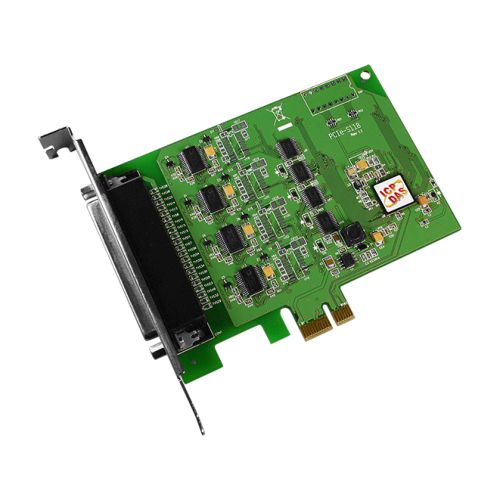

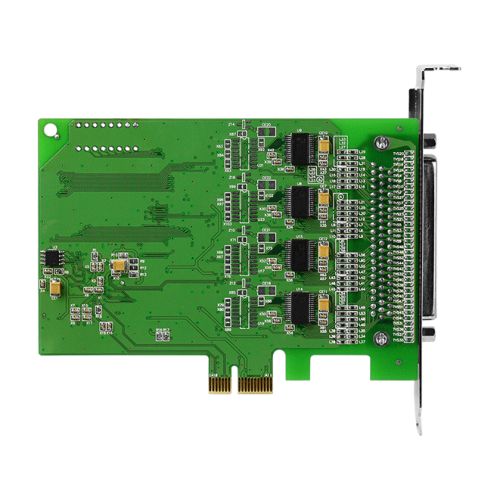

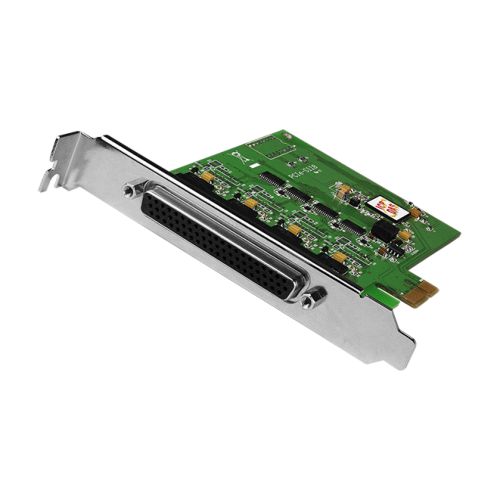

PCIe-S118 CR ICP DAS PCI Express



PCIe-S118 CR

PCI Express, Serial Communication Board with 8 RS-232 ports Includes one CA-PC62M D-Sub connector



€ 183,57

(VAT excluded)

€ 223,96(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 223,96

Availability: 15 business days

SKU: 106295

Model: PCIe-S118 CR

Need Help?

The PCIe-S118/VXC-118U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The VXC-118U supports 3.3 V/5 V PCI bus, while the PCIe-S118 supports PCI Express bus.
The PCIe-S118/VXC-118U card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 115200 bps (VXC-118U) or 921600 bps (PCIe-S118) and supports full-duplex communication. The PCIe-S118/VXC-118U card support drivers choose an available COM port number automatically.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
PCIe-S118 CR: PCI Express, Serial Communication card with 8 RS-232 ports (RoHS). Includes one CA-PC62M D-Sub connector.

  • Supports PCI Express for PCIe-S118
  • Supports 3.3 V/5 V PCI Bus for VXC-118U
  • Provides 8 RS-232 ports
  • Automatically select an avaiable COM port number
  • Supports COM port number selection under software control
  • 256-byte Hardware FIFO for Each Port
  • Short Card Design
  • RoHs compliant & no Halogen

Communication Port

COM1 ~ COM8: RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND)
UART: 16C950 compatible
Baud Rate: 2400 - 921600 bps
Data bit: 5, 6, 7, 8
Stop bit: 1, 1.5, 2
Parity: None, Even, Odd, Mark, Space
FIFO: Internal 256 bytes


Bus Type: PCI Express x1
COM-Selector: No
Connector: Female DB-62
Power Consumption: 120 mA @ 5 V
Operating Temp.: 0 °C ~ +60 °C
Storage Temp.: -20 °C ~ +70 °C
Humidity: 0 ~ 90% RH, non-condensing
Dimensions (L x W x D): 131 mm x 121 mm x 22 mm
