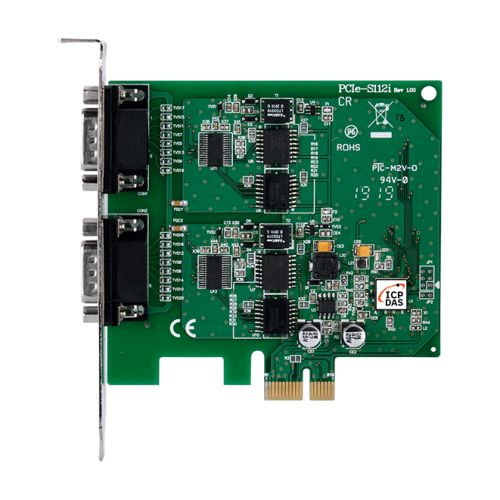

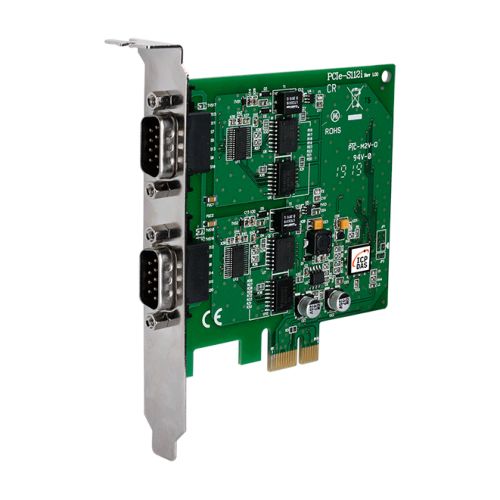

PCIe-S112i CR
PCI Express, Serial Communication Board with 2 Isolated RS-232 ports
Free Shipping
Features
- Supports PCI Express x1
- Provides 2 RS-232 ports
- 256-byte Hardware FIFO for Each Port
- Transmission Speed of up to 921600 bps
- ±4 kV ESD Protection
- 3000 VDC Isolation
- Short Card Design
Introduction
The PCIe-S112 series card provides 2 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 921600 bps and supports full-duplex communication.
The data lines of each serial ports on i version PCIe cards come with photocouplers design. The on-board photo couplers use a short optical transmission path to transfer a signal between elements of a circuit, and keep the data lines electrically isolated. It can help cutting down on ground loops, common mode voltages and block voltage spikes, provide electrical isolation, and offer significant protection from serious over-voltage conditions in one circuit affecting the other.
In harsh industrial environments, the on-board ESD protection component (for i version) diverts the potentially damaging charge away from sensitive circuit to protects the computer and equipment from the sudden and momentary electric current.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
Drivers provided for a broad selection of operating systems, including 32/64-bit Windows XP/2003/2008/7/8/10 and Linux Kernel 2.4X/2.6X ~ 4.15.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
Specifications
Hardware
Connector: 2 x DB9 (Male)
COM Ports
Ports: 2 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND)
Baud Rate: 300 ~ 921600 bps
Parity: None, Even, Odd, Mark, Space
Data Bit: 5, 6, 7, 8
Stop Bit: 1, 1.5, 2
FIFO Size: Internal 256 bytes
Isolation: 3000 VDC
Power
Consumption: 440 mA @ 5 V
Mechanical
Dimensions (mm): 94 x 109 x 22 (W x L x D)
Environment
Operating Temperature: 0 ~ +60°C
Storage Temperature: -20 ~ 70°C
Humidity: 5 ~ 85% RH, Non-condensing
