PCIe-LM4 CR ICP DAS PCI Express

PCIe-LM4 CR ICP DAS

PCIe-LM4 CR ICP DAS

PCIe-LM4 CR

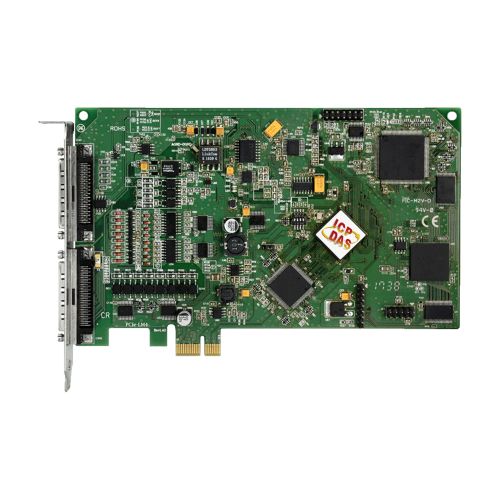

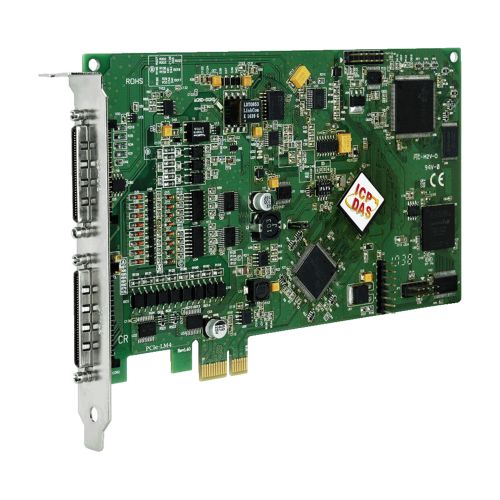

PCI Express, 24-bit Precision Load Cell Input, Multi-function Motion Control Board

Quantity:

Price

€ 1.099,96

(VAT excluded)

€ 1.341,95(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.341,95

Availability: 15 business days

SKU: 119002

Model: PCIe-LM4 CR

Need Help?


 Features

  • PCI Express x1 Interface
  • Supports CardID (SMD Switch)
  • 4-channel Load Cell Transducer Input
  • 24-bit ADC with Max. 15 kS/s. Sampling Rate
  • 4 Differential general analog input Channels
  • 24-bit ADC with Max. 15 kS/s. Sampling Rate
  • 2-axis pulse output and encoder
  • Support mode CW/CCW, Pulse/DIR and EA/EB
  • 2-channel 16-bit analog output
  • 16-channel Isolated Digital Input
  • 16-channel Isolated Digital output


Introduction

The PCIe-LM4 is a powerful multifunction board based on the PCI Express. Equipped with four Load Cell (strain gauge) input channels, four general analog input channels, a 2-axis motion controller, two analog output channels, sixteen isolated digital input channels and sixteen isolated digital output channels.

The PCIe-LM4 also adds a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCIe-LM4 cards in one computer.

These cards support various OS versions, such a Windows 32/64-bit Windows 7/8/10. DLL together with various language sample programs based on Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.


Specifications

Hardware

Card ID: Yes (4-bit)
Connector: SCSI VHDCI 68-pin x 2


Encoder Input

No. of Axes: 2-axis
Ring Counter Mode: 32-bit
Mode: A/B pulse, Up/Down
Isolation: 3 KVrms
Counting Rate: 12 MHz (Max.)
Counter Width: 32-bit


Pulse Output

No. of Axes: 2-axis
Mode: CW/CCW, PULSE/DIR
Rate: 4 MHz (Max.)
Isolation: 3 KVrms


Analog Input

Channels: 4 differential
Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution: 24-bit
Accuracy: 0.05% of FSR ±1 LSB @ 25°C, ±10 V
Sampling Rate: 15 kS/s
Input Impedance: 10,000 MΩ/4 pF
Overvoltage Protection: Continuous ±35 Vp-p
Trigger Mode: Software
Data Transfer: Polling


Analog Output

Channels: 2
Range: ±5 V, ±10 V
Resolution: 16-bit
Accuracy: ±10 LSB
Voltage Output Capability: ±5 mA
Response Time: 500 kS/s (Max.)
Slew Rate: 2.8 V/µs
FIFO Size: 512 Samples
Operation Mode: Static update, Waveform generation


Digital Input

Channels: 16
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source, Photo coupler isolated channel with common power or ground
ON Voltage Level: 5 ~ 24 V
OFF Voltage Level: 0 ~ 1 V
Response Speed: 4 kHz (Typical)
Trigger Mode: Static Update
Data Transfer: Polling
Isolation: 2500 VDC


Digital Output

Channels: 16
Sink/Source (NPN/PNP): Sink, Open Drain
Operation Mode: Static Update
Load Current: 100 mA/+ 30V for each channel @100% duty
Response Speed: 4 kHz (Typical)
Isolation: 2500 VDC
DO Readback: No
Strain Gauge, Load Cell Input:
Channels: 4
Type: Strain Gauge
Range: ±227 mV
Wiring: Full-Bridge
Accuracy: 0.05% of FSR ±1 LSB @ 25°C, ±10 V
Resolution: 24-bit
Sampling Rate: 15 kS/s
Impedance: 10,000 MΩ/4 pF
Overvoltage Protection: Continuous ±35 Vp-p


Excitation Voltage Output

Channels: 4 differential
Range: + 10V (all 4-ch shared the same settings)
Max. Load Current: Driving up to four 120-ohm loadcells


Timer/Counter/Frequency

Channels: 2


PC Bus

Type: PCI Express x 1
Data Bus: 32-bit


Power

Consumption: 1 A @ +5 V


Mechanical

Dimensions (mm): 102 x 149 x 22 (W x L x D)


Environment

Operating Temperature: 0 ~ +60°C
Storage Temperature: -20 ~ +70°C
Humidity: 5 ~ 85% RH, Non-condensing
